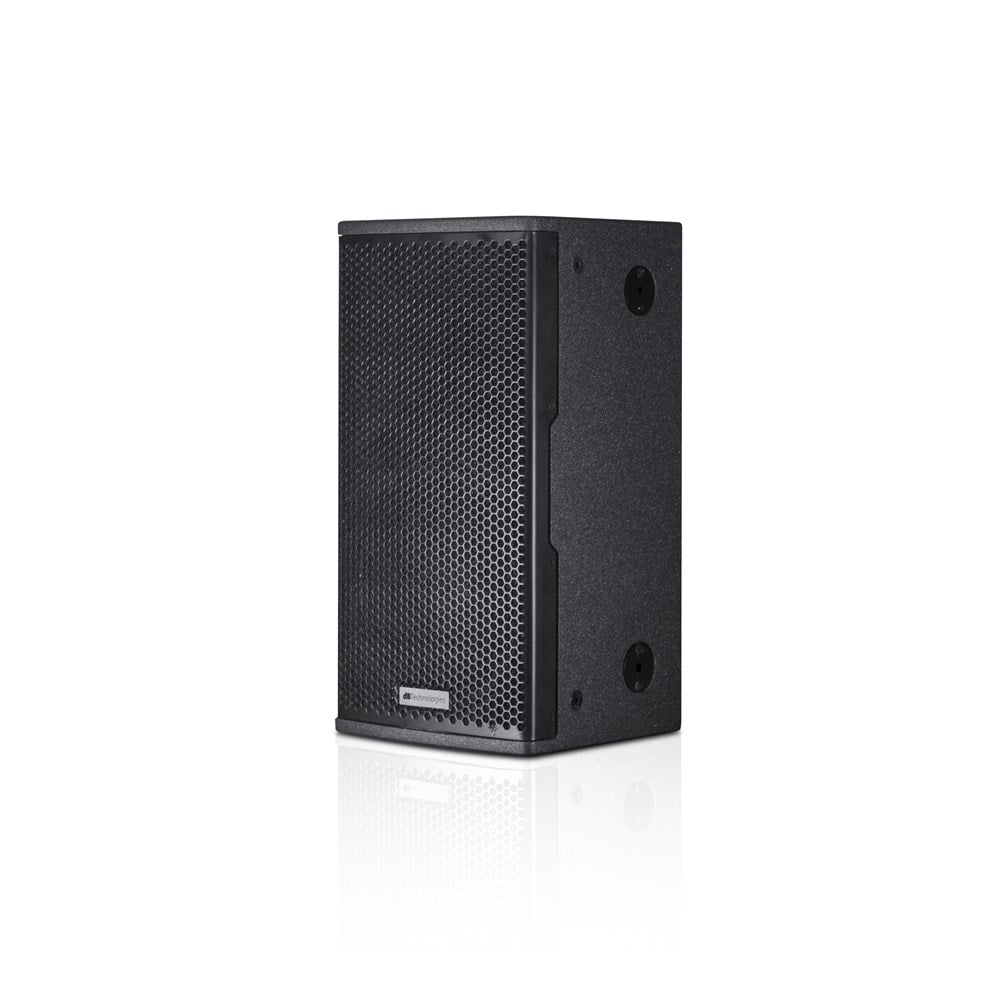

VIO X10 (dBTechnologies)

2 Yollu Aktif Hoparlör LF:10”,HF: 1,”, 900 Watt

Teknik Özellikleri



2 Yollu Aktif Hoparlör



Acoustical data

Frequency Response [-10dB]73 - 21.400 Hz

Frequency Response [-6dB]82 - 20.000 Hz

Max SPL130 dB

HF1x 1” v.c. 1.75"

LF1x 10”, v.c. 2.5" Neodyium

Directivity90° x 40°

HornRotatable CD Horn



Amplifier

Amplifier900 W RMS Class-D Digipro® G3

CoolingConvection

Power SupplyAuto-range SMPS



Processor

ControllerDSP 28/56 bit

AD/DA Converter24 bit/48 kHz

LimiterPeak, RMS, Thermal

ProcessingFIR Linear Phase Filters



Input

Signal Input1 x XLR balanced, 1 x RJ45 Link (RDNet)

Signal Output1x XLR balanced, 1 x RJ45 Link (RDNet)

Power Socket1x PowerCON TRUE1 In

1x PowerCON TRUE1 Out

Controles1x Rotary Encoder (8x EQ, HPF presets)

1x Input sensitivity potentiometer

1x Mic / line switch

Special FeaturesOpto-isolated floating pre-amp
