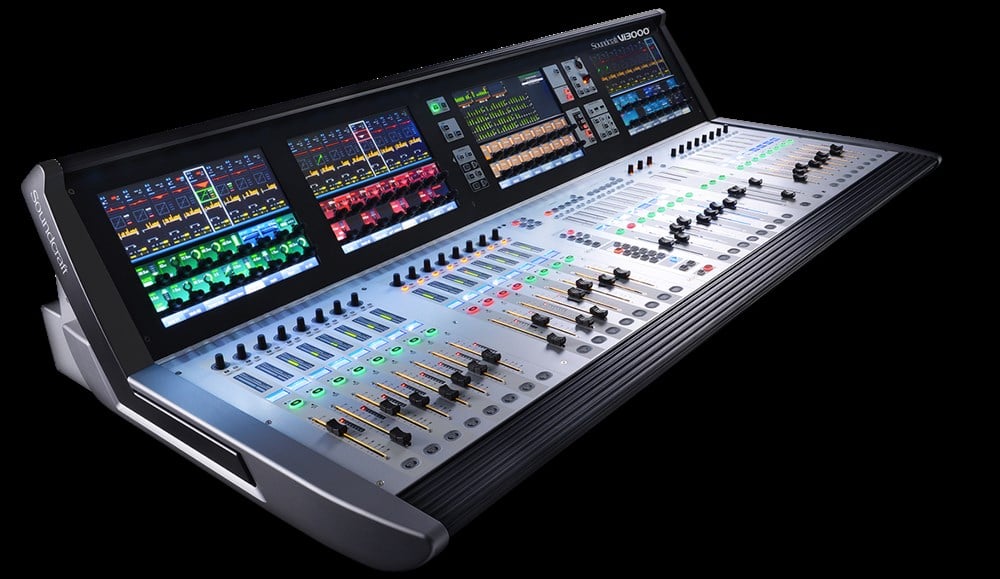

| Frequency Response - Stagebox Mic input to Line output |
+0/-1dB, 20Hz-20kHz |
| AES/EBU In to AES/EBU Out |
+0/-0.2dB, 20Hz-20kHz |
| THD |
22Hz-22kHz |
| Stagebox Mic In (min gain) to Local Line Out |
<0.003% @ 1kHz |
| Stagebox Mic In (max gain) to Local Line Out |
<0.020% @ 1kHz |
| Local Line In to Line Out |
<0.003% @ 1kHz |
| Mic Input E.I.N |
<-126dBu (150Ω source) |
| Residual Noise |
-91dBu Stagebox line output; no inputs routed, Mix fader @0dB |
| CMRR |
80dB @ 1kHz |
| Sampling Frequency |
48kHz |
| Latency: Stagebox Mic Input to Local Line output |
< 2ms @48kHz |
| AES/EBU Input Sample Rate |
32-108kHz (with SRC enabled) |
| DSP Resolution |
40-bit floating point |
| Internal Clock Accuracy |
< +/- 50ppm |
| Internal Clock Jitter |
< +/- 2ns |
| External Sync |
BNC Wordclock |
| Input & Output Levels - Mic Inputs |
+28dBu max |
| Input & Output Levels - Line Inputs |
+22dBu max |
| Input & Output Levels - Line Outputs |
+22dBu max |
| Input & Output Levels - Nominal Operating Level |
+4dBu (-18dBFS) |
| Input & Output Impedances - Mic Inputs |
2k7Ω |
| Input & Output Impedances - All other analogue Inputs |
>10kΩ |
| Input & Output Impedances - Line Outputs |
<75Ω |
| Input & Output Impedances - AES/EBU Outputs |
110Ω |
| Oscillator |
20Hz to 20kHz/Pink/White Noise, variable level |
| Oscillator - Stagebox HP Filter |
80Hz fixed, 12dB per octave |
| Oscillator - Channel HP Filter |
20Hz-600Hz, 18dB per octave |
| Oscillator - Channel LP Filter |
1kHz-20kHz, 18dB per octave |
| EQ (Inputs and Bus Outputs) - HF |
20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving |
| EQ (Inputs and Bus Outputs) - Hi-Mid |
20Hz-20kHz, +/-18dB, Q=0.3-8.7 |
| EQ (Inputs and Bus Outputs) - Lo-Mid |
20Hz-20kHz, +/-18dB, Q=0.3-8.7 |
| EQ (Inputs and Bus Outputs) - LF |
20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving |
| Metering |
Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s. |
| Mains Voltage Operating Range |
90-264V, 47-63Hz, auto-ranging |
| Mains Power Consumption |
300W |
| Temperature/Humidity Range - Operating Temperature Range |
0°C to 45°C (32°F to 113°F) |
| Temperature/Humidity Range - Relative Humidity |
0% - 90%, non-condensing Ta=40°C (104°F) |
| Temperature/Humidity Range - Storage Temperature Range |
-20°C to 60°C (-4°F to 140°F) |
| Height (Console Only) |
351mm (13.8") |
| Width (Console Only) |
1446mm (56.9") |
| Depth (Console Only) |
803mm (31.6") |
| Weight (Console Only) |
54kg (119lb) |
| Height (with standard shipping carton) |
595mm (23.5") |
| Width (with standard shipping carton) |
1580mm(62.2") |
| Depth (with standard shipping carton) |
950mm(37.4") |
| Weight (with standard shipping carton) |
96kg (212lb) |
| Height (with factory flightcase) |
1117mm(44.0") |
| Width (with factory flightcase) |
1530mm(60.3") |
| Depth (with factory flightcase) |
530mm(20.1") |
| Weight (with factory flightcase) |
141kg(311lb) |
