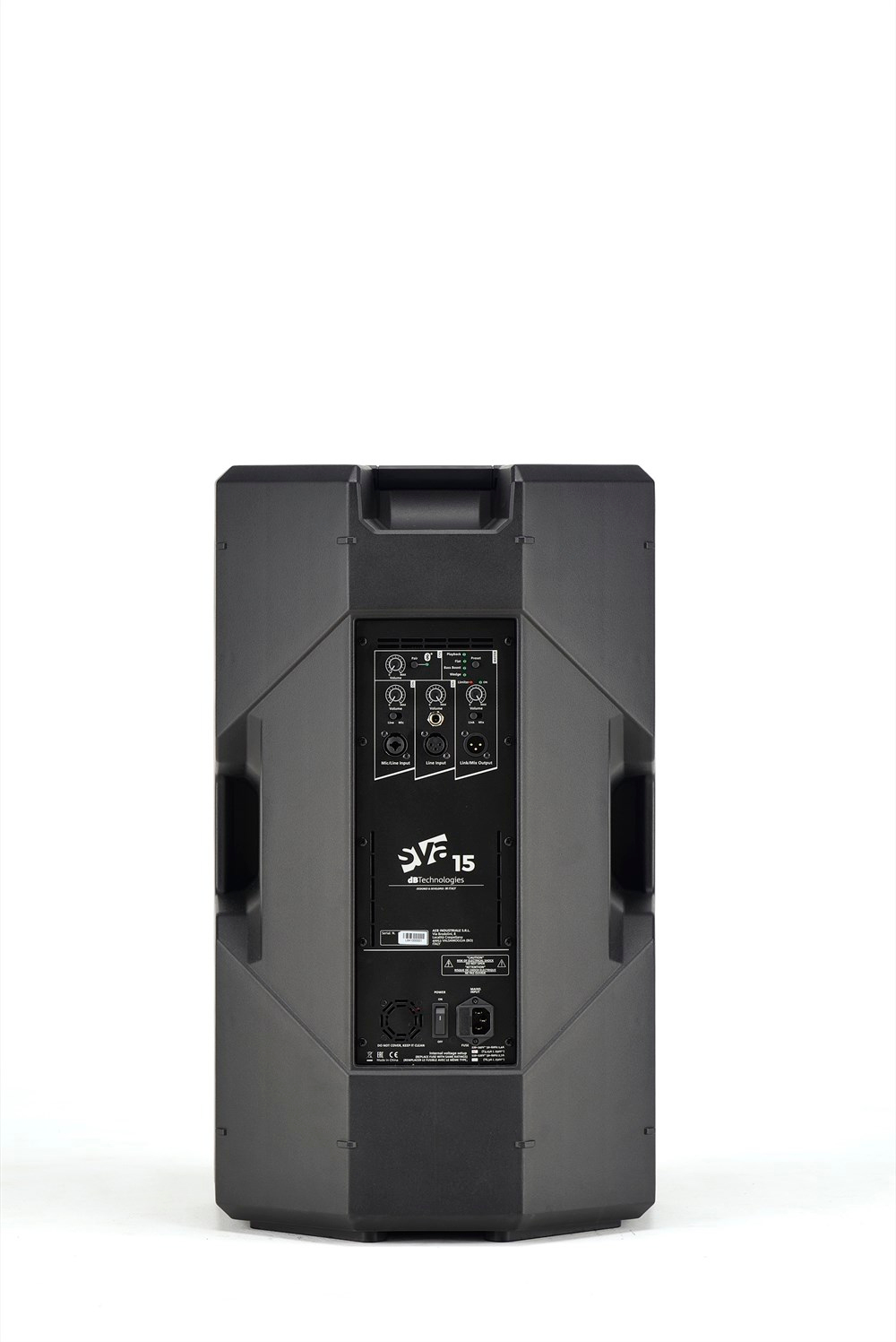

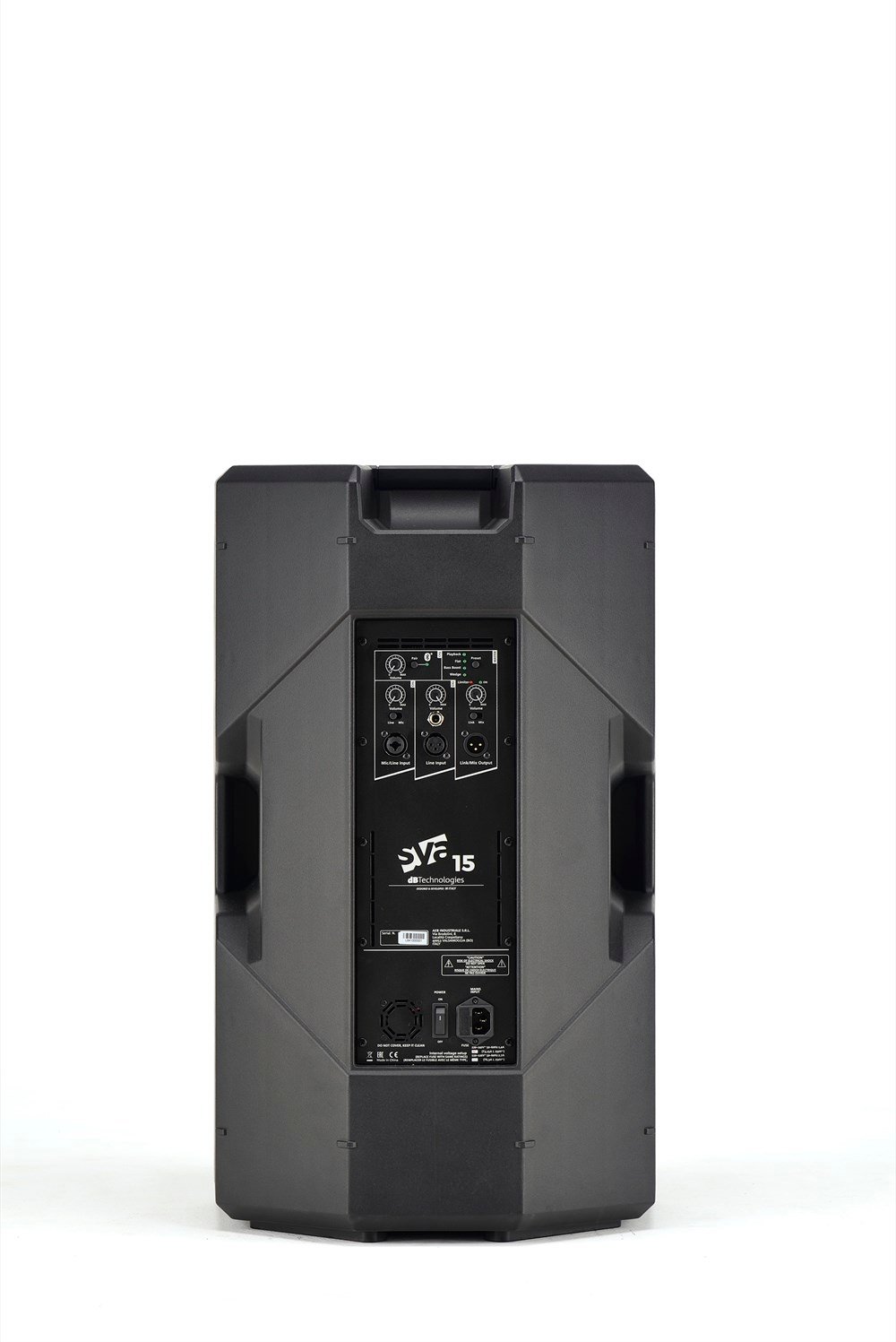

SYA 15 (dBTechnologies)





Frequency Response [-10dB]

48 - 18.000 Hz





Max SPL

128 dB





HF

1" CD, 1.35"v.c





LF

15", 2.5" v.c.





Dispersion

90°x60°





Crossover Frequency

1800 Hz (24 dB/oct.)







Amplifier



Amp Technology

Class D(LF)+Class AB (HF)





Power Peak (LF+HF)

800 W







Processor



Controls

1xVolume, 1xslide switch mic/line





Indicators

power on/signal/limiter LEDs





Controller

DSP 20/56 bit





AD/DA Converter

24 bit/ 48 Hz





Systems Presets

Playback, Flat, Bass Boost, Wedge





Limiter

Peak, RMS, Thermal





Advanced DSP Functions

Linear Phase FIR Filters







Input



Signal Input

1x Combo(XLR/Jack)
Mic/Line
1xXLR/TRS





Bluetooth Input

1xBluetooth receiver





SIGNAL Output

1xXLR Male (LINK/MIX)







Mechanics



Housing

Polypropylene





Handles

3 (2 on side 1 on top)





Angles Up

Monitor Use 45°





Pole Mount

36 mm, double positioning





Width

430 mm (16.92 in)





Height

722 mm (28.44 in)





Depth

402 mm (15.82 in)





Weight

19.3 kg (42.54 lbs)
