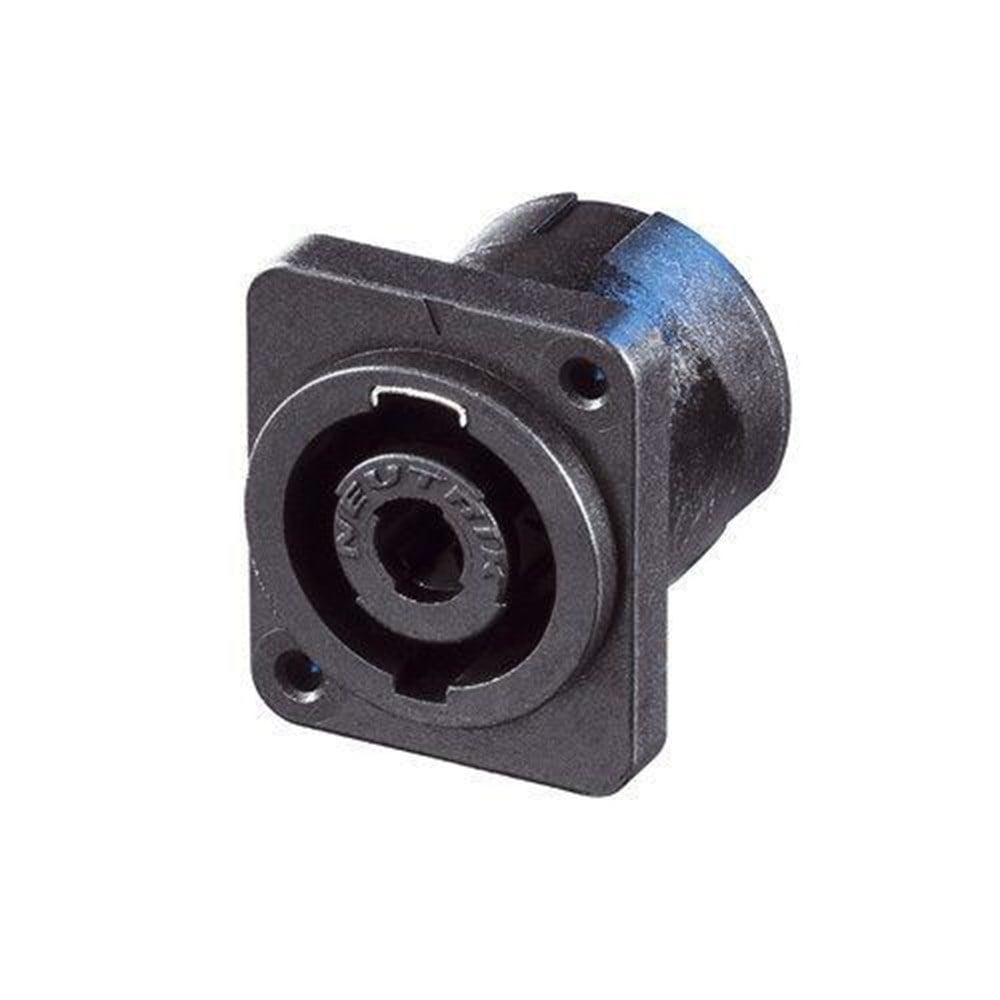

NEUTRİK NL4MP-2 SPEKON TİPİ KONNEKTÖRLER (NEUTRİK)

Marka : NEUTRİK

Neutrik NL4MP-2 SPEKON ŞASE TİPİ KONNEKTÖRLER





Technical Information





Product
Title NL4MP-2
Connection Type speakON
Gender male
Electrical
Contact resistance ≤ 3 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 30 A rms continuous
Rated current per contact 40 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Wiresize
Locking device Quick Lock
Mounting direction Rear mounting
Chassis shape D
Layout mirrored hole position, self tapping screw holes (A-Screw)
Material
Contact plating 4 µm Ag
Contacts Bronze (CuSn6)
Shell Polyamide (PA 6 30 % GR) black
Environmental
Flammability UL 94 HB
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
