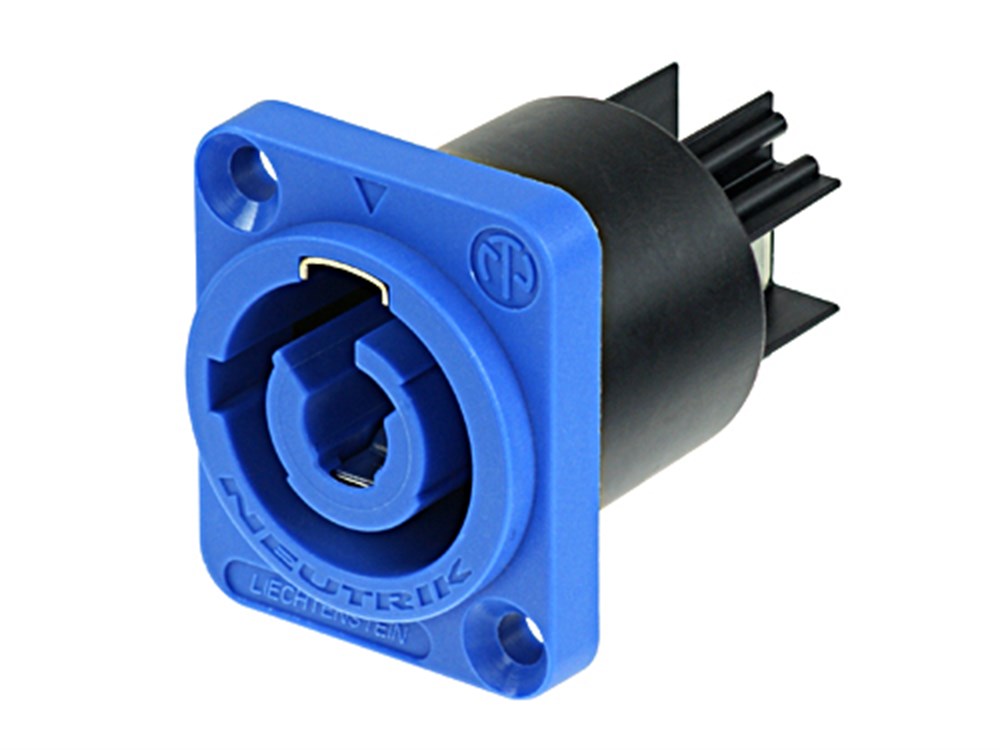

NEUTRİK NAC3MPA-1 POWERCON TİPİ KONNEKTÖRLER (NEUTRİK)

Marka : NEUTRİK

Neutrik NAC3MPA-1 POWERCON  ŞASE TİPİ KONNEKTÖRLER





Technical Information





Product
Title NAC3MPA-1
Gender male
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts 2 + PE
Rated current per contact 20 A rms
Rated voltage 250 V ac
Mechanical
Lifetime > 1000 mating cycles
Wiresize
Locking device Quick Lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating 2 µm Ag
Locking element Steel Ck67
Shell Polyamide (PA 6.6 30 % GR)
Contacts Bronze (CuNi1Si0.2)
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C
