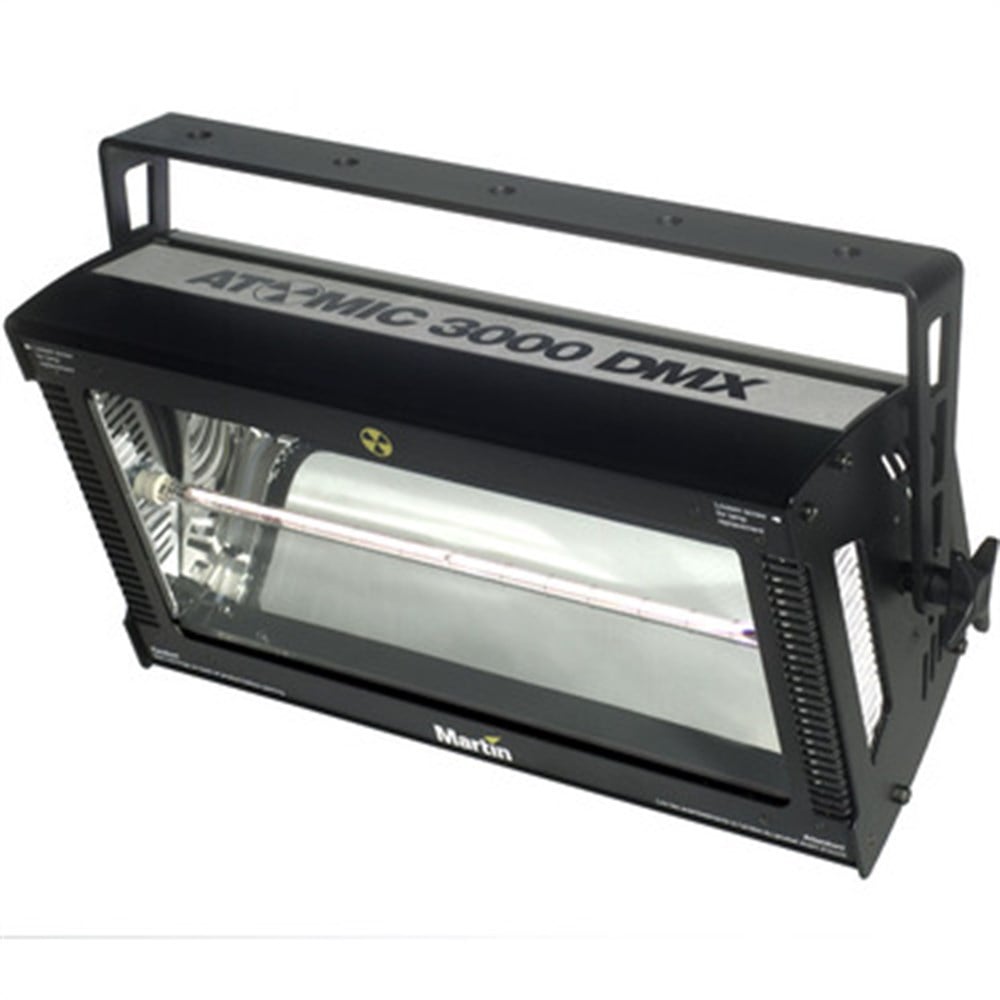

Martin ATOMIC 3000 DMX
Martin ATOMIC 3000 DMX

Martin ATOMIC 3000 DMX (ATOMIC 3000 DMX)

Marka : MARTIN

ÖZELLİKLER







  • PHYSICAL

  • Length: 425 mm (16.7 in.) without bracketWidth: 245 mm (9.6 in.) without bracketHeight: 240 mm (9.4 in.) without bracketWeight: 7.5 kg (16.5 lbs.) without bracket

    DYNAMIC EFFECTS

  • Variable strobe: 0 - 650 ms (50 Hz supply), or 0 - 530 ms (60 Hz supply)Strobe rate: 0 - 25 flashes/second (50 Hz supply), 0 - 30 flashes/second (60 Hz supply)Strobe intensity: Blackout - maximumBlinder effect: Continuous with auto fadeSpecial effects: Ramp up, ramp down, ramp up-down, random flash, lightning, spikes, blinder, single flash

    CONTROL AND PROGRAMMING

  • Control options: DMX, stand-alone, multi-fixture chase (with Detonator remote), MC-1Stand-alone control: Via N.O. or N.C. SPST switchStand-alone options: Selectable flash rate or blinder effectSetting and addressing: DIP switchDMX channels: 1, 3, and 4 channel modesReceiver: RS-485DMX compliance: USITT DMX512/1990

    LAMP

  • Type: Xenon dischargeApproved lamps: MAX-15 Xenon (200-240 V power), MAX-7 Xenon (100-120 V power)

    CONSTRUCTION

  • Housing: SteelColor: BlackFinish: Electrostatic powder-coated

    INSTALLATION

  • Minimum clearance around fan and air vents: 0.1 m (0.4 ft.)Mounting points: Five 12 mm (0.5 in.) holes in mounting bracketOrientation: AnyMinimum distance to combustible materials: 0.5 m (1.7 ft.)Minimum distance to illuminated surfaces: 1 m (3.3 ft.)

    CONNECTIONS

  • Power connection: 1.5 m (4.9 ft.) cable tail, 14 AWGDMX data in/out: 3-pin and 5-pin XLR sockets

  • ELECTRICALAC

  • power (MAX-7 model): 100-120 V nominal, 50/60 HzAC power (MAX-15 model): 200-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch-modeTypical current consumption (MAX-15, high power mode): 8 APeak current consumption: 33 AMain fuse (all AC power voltages): 20 AT (slow blow), 250 VAC mains power cable: 14 AWG or 2.5mm2

    THERMAL

  • Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Maximum lamp socket temperature: 120° C (248° F)

    APPROVALS

  • EU safety: EN 60598-1, EN 60598-2-17EU EMC: EN 50 081-1, EN 50 082-1US safety: ANSI/UL 1573Canadian safety: CSA C22.2 No. 166

    INCLUDED ITEMS

  • MAX-15 Xenon lamp (installed, EU model): P/N 97010307MAX-7 Xenon lamp (installed, US model): P/N 97010308User manual: P/N 35000094

    ACCESSORIES

  • G-clamp: P/N 91602003Atomic Detonator: P/N 90760020Atomic Colors for Atomic 3000: P/N 91611086Half-coupler clamp: P/N 91602005

    SPARE PARTS

  • MAX-15 lamp for use with 200-240 V power: P/N 97010307MAX-7 lamp for use with 100-120 V power: P/N 97010308Main fuse (20 AT): P/N 05020040

    ORDERING INFORMATION

  • Atomic 3000 DMX EU model (MAX-15 lamp, 200-240 V): P/N 90424200Atomic 3000 DMX US model (MAX-7 lamp, 100-120 V): P/N 90424300
