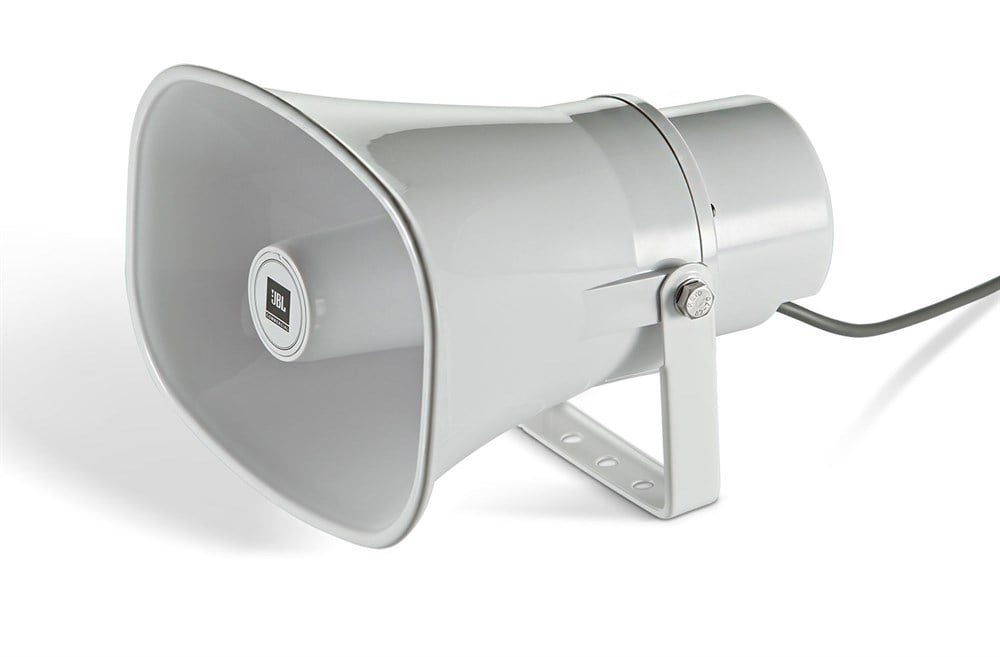

JBL CSS-H30 (JBL)

Marka : JBL

JBL CSS-H30  8 Ohm

30 Watt  70V / 100V

70V: 30W, 15W, 7.5W, 3.8W. 1.9W

100V: 30W, 15W, 7.5W, 3.8W



ÖZELLİKLER





Frequency Response (-10 dB) 380 Hz – 6 kHz
Coverage Pattern 50° horizontal by 70° vertical (at 2 kHz and averaged 1 kHz – 4 kHz)
Included High-Pass Filter Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.
Directivity Factor (Q) 15.8 (2 kHz)
Directivity Index (DI) 12 (2 kHz)
System Power Rating 30 W (120 W peak), 100 hrs.
Sensitivity (1W, 2.83V@ 1m) 108 dB, ave. 1 kHz – 6 kHz112 dB at 1.4 kHz
Maximum SPL (1m) 123 dB cont ave. (129 dB peak), 1 kHz – 6 kHz; 127 dB cont ave. (133 dB peak), 1.4 kHz, 30W input, 8 ohm Setting
Nominal Impedance 30W/70V, NC/100V tap: 167 ohms 15W/70V, 30W/100V tap: 333 ohms 7.5W/70V, 15W/100V tap: 667 ohms 3.8W/70V, 7.5W/100V tap: 1333 ohms 1.9W/70V, 3.8W/100V tap: 2666 ohms 8 ohms at 8 ohm direct setting
Transformer Taps 70V: 30W, 15W, 7.5W, 3.8W, 1.9W100V: 30 W, 15W, 7.5W, 3.8W
Driver 38 mm (1.5 in) diameter with phenolic diaphragm
Horn Material ABS
Mounting Hardware Stainless steel powder-coated U-bracket (yolk) with 3 x 10.4 mm (0.41 in) dia mounting holes, stainless steel exterior hardware.
Color RAL9016 (horn and bracket)
Input Connection 300 mm (12 in) pigtail to bare wire; entrance via watertight fitting. Wire colors: red = positive (+); black = negative (-).
Environmental IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware.
Safety Agency Transformer UL Registered per UL1876 “Isolating Signal and Feedback Transformers for Use in Electronic Equipment”
Dimensions (H x W x D) 206 x 285 x 287 mm (8.2 x 11.2 x 11.3 in) horn 224 x 285 x 287 mm (8.9 x 11.2 x 11.3 in) including mounting bracket. Depth excludes cable exit.
Weight (ea) 4.5 lb/2.0 kg
Shipping Weight (ea) 6.0 lb/2.7 kg
Included Accessories Stainless steel mounting bracket
