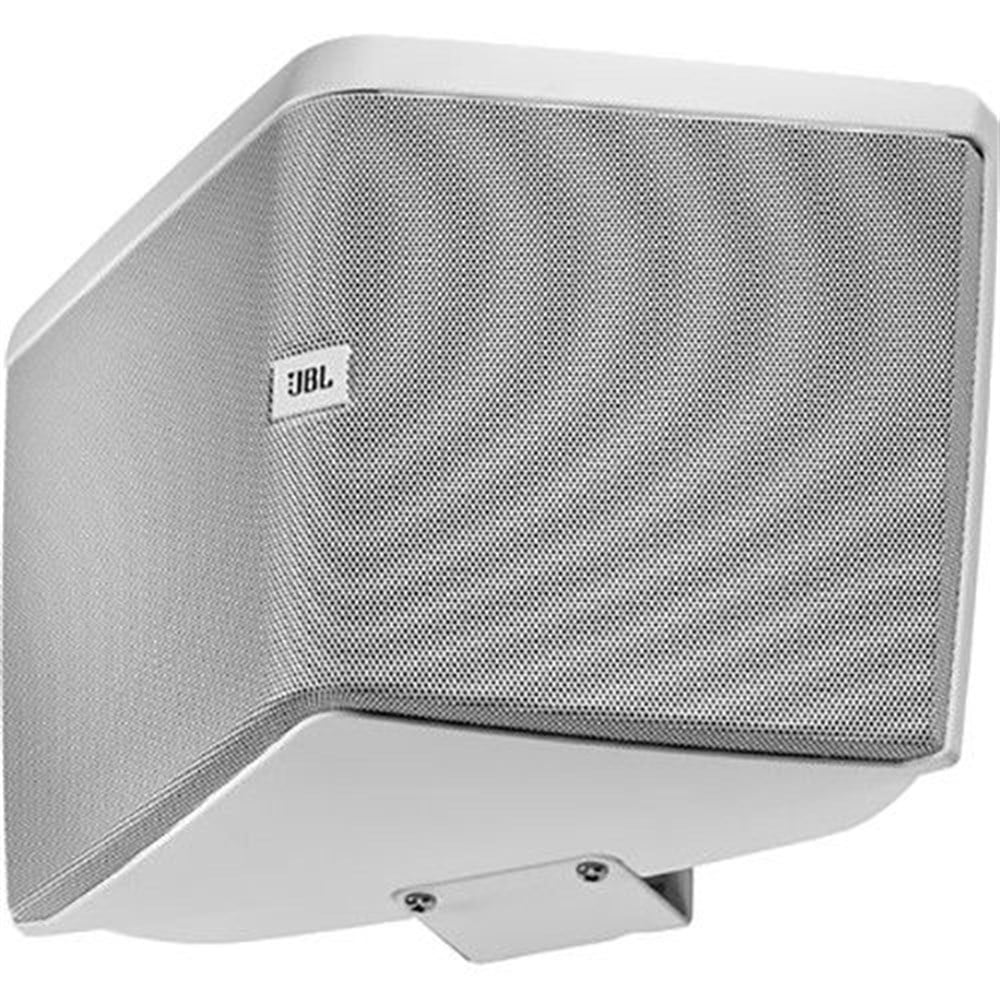

JBL CONTROL HST-WH
JBL CONTROL HST-WH
JBL CONTROL HST-WH
JBL CONTROL HST-WH

JBL CONTROL HST-WH (JBL)

Marka : JBL

JBL CONTROL HST-WH

5-1 / 4 "LF, Çift Tweeter'lar ve HST Technology ™ ile Geniş Kapsamlı Hoparlör

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

ÖZELLİKLER



Frequency Range (-10 dB) 50 Hz – 20 kHz
Frequency Response (±3 dB) 68 Hz – 18 kHz
Coverage Pattern 180° H x 160° V (1 kHz – 2 kHz, nominal) 160° H x 150° V (ave, 1 kHz – 16 kHz)
Directivity Factor (Q) 5.4 (1 k – 16 kHz)
Directivity Index (DI) 7.2 dB (1 k – 16 kHz)
System Power Rating (IEC) 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs.
Sensitivity (2.83V @ 1m) 88 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL Direct 8Ω: 108 dB (peaks of 114 dB) 60 W Tap: 97 dB @ 60W
Crossover Network 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
Nominal Impedance 8 ohms
Transformer Taps 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W
Low Frequency Driver CMMD™ ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil.
High Frequency Drivers Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling.
Enclosure Fiberglass-reinforced ABS
Attachment Four M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole.
Grille Aluminum grille, painted to match cabinet color.
Input Connection Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2).
Environmental IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.
Dimensions 362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket.
Colors Available in black (RAL9004) and white (-WH, RAL9016)
Net Weight 3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket
Included Accessories U-bracket, matches loudspeaker color (black or white), zinc-rich extra-thick powder coated steel.
