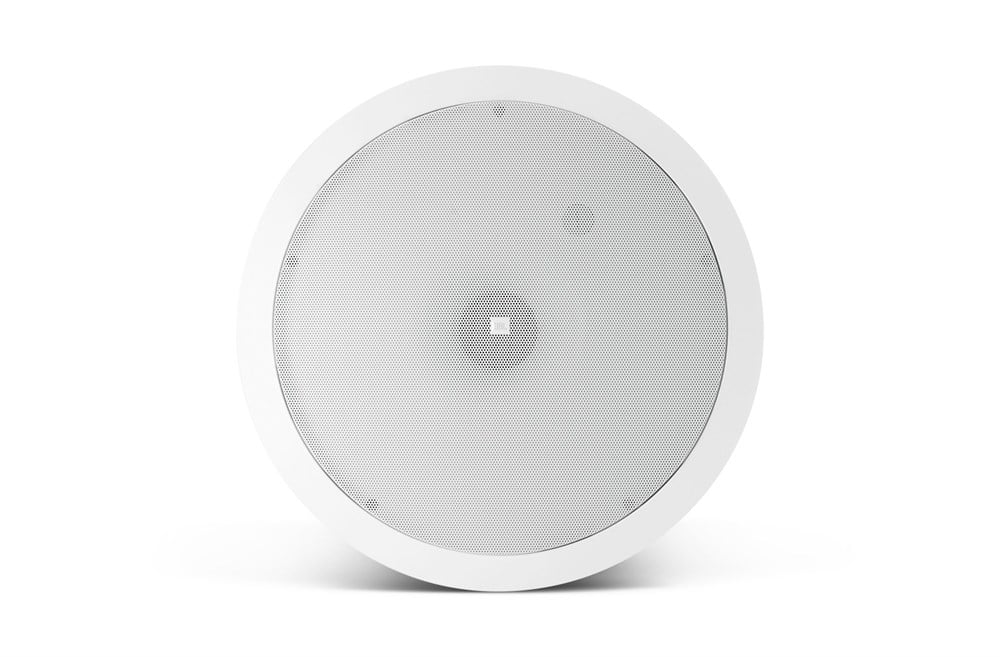

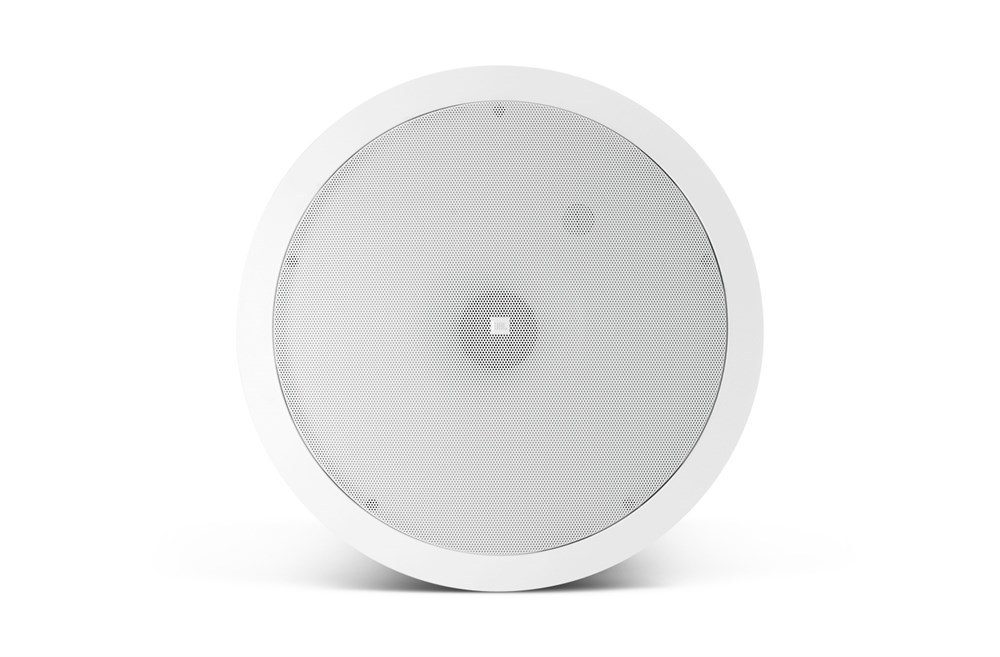

JBL CONTROL 19CS (JBL)

Marka : JBL

JBL  CONTROL 19CS  Tavan Hoparlörü

8 ohm 200W Program and 100W Pink Noise Power

ÖZELLİKLER

Frequency Range 42 Hz - 200 Hz
Power Capacity 200 W Continuous Program Power
Nominal Sensitivity 95 dB SPL, 1W @ 1 m (3.3 ft) in ceiling near corner (π/2) 89 dB SPL, 1W @ 1 m (3.3 ft) in center of ceiling (2π)
Nominal Coverage Angle 180° conical coverage
Rated Maximum SPL 115 dB @ 1 m (3.3 ft) in ceiling near corner (π/2)
Nominal Impedance 8 ohms
Low Frequency 200 mm (8.0 in) Polypropelene cone. 38 mm (1.5 in) coil on aluminum former
Enclosure Material Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Overload Protection Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST)
Terminations Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2)
Safety Agency Rating In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.
Outside Dimensions (H x Dia) 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
Cutout Size (H x W) 305 mm (12.0 in)
Net Weight (ea) 5.5 kg (12 lb
Shipping Weight (pair) Control 19CS: T12.7 kg (28 lb)Control 19CST: 14.3 kg (32 lb)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
