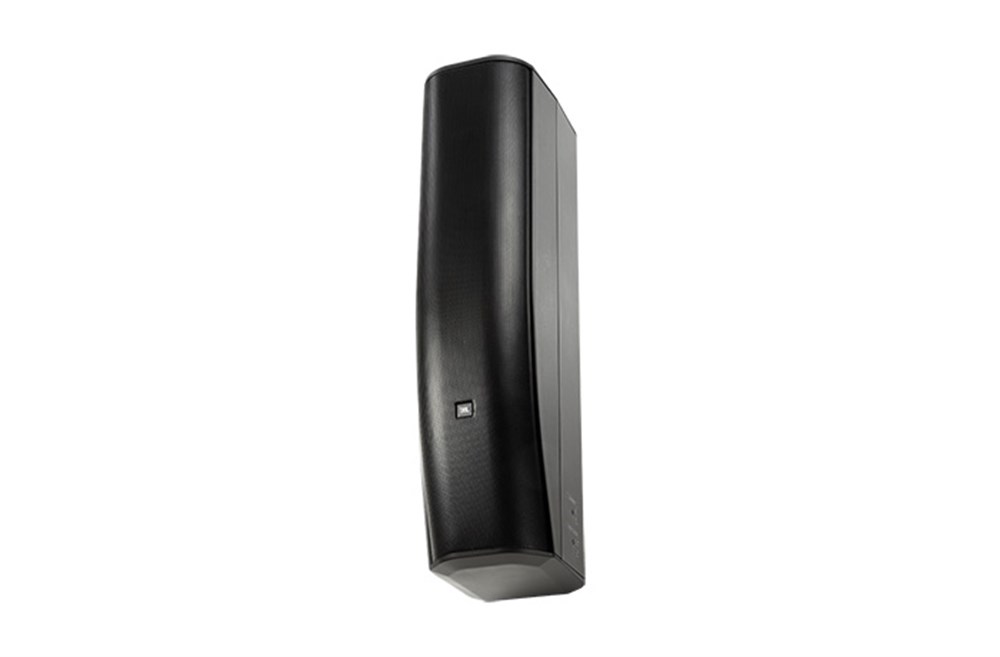

JBL CBT 70J-1
JBL CBT 70J-1
JBL CBT 70J-1
JBL CBT 70J-1

JBL CBT 70J-1 (JBL)

Marka : JBL

JBL CBT 70J-1



8 ohm



Fiyat İçin:

Ankara :0312 309 52 26

Kayseri:0352 222 00 08





ÖZELLİKLER









Components Four 130 mm (5 in) LF drivers Sixteen 25 mm (1 in) HF drivers
Frequency Range (-10 dB) 60 Hz – 20 kHz
Coverage Vertical (selectable via switch) Narrow Mode: 25° (2 kHz - 16 kHz) (±10°) Broad Mode: 45° (750 Hz - 16 kHz) (±10°) Horizontal 150° (500 Hz – 8 kHz, ±20°)
Sensitivity (2.83V@ 1m) Narrow: (speech mode) 98 dB (1 kHz - 8 kHz) (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 96 dB (1 kHz - 8 kHz) (music mode) 92 dB (300 Hz - 18 kHz)
Nominal Impedance 8 ohms
Power Capacity 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs
Max SPL Narrow: (speech mode) 125 dB cont ave (131 peak) (music mode) 120 dB cont ave (126 peak) Broad: (speech mode) 123 dB cont ave (129 peak) (music mode) 119 dB cont ave (125 peak)
Low Frequency Drivers 4 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance, shielded.
High Frequency Drivers 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Colors Black or white (-WH)
Insert Points 10 M6 swivel (pan)/tilt (16 mm deep) insert points on back panel.
Mounting Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/-15 degree tilt, as well as 5 degree fixed increment points. Ten threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for OmniMount® 60.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D) 694 x 170 x 237 mm(27.4 x 6.7 x 9.3 in)
Net Weight 9.5 kg (21 lb)
Included Accessories Swivel (pan) / tilt wall bracket
Optional Accessories MTC-PC2 terminal panel coverMTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm heavy duty speaker stand MTC-CBT-FM2 flush-mount low-profile wall-mount bracket
