JBL C62P (JBL)

Marka : JBL

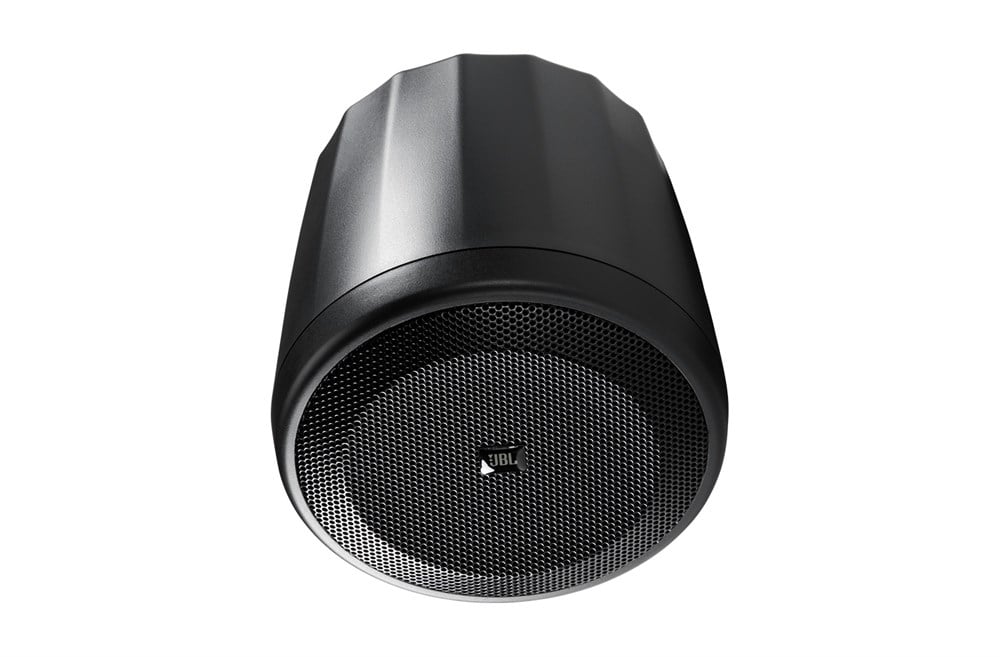

JBL C62P Sarkıt Hoparlör

Fiyat Düşünce Haber Ver

ÖZELLİKLER

Frequency Response (-10 dB)	150 Hz – 20 kHz
Frequency Range (±3 dB)	200 Hz – 17 kHz
Power Capacity	50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity	87 dB (4.0 V, 1 W)84 dB (2.83 V)
Nominal Coverage Angle	140° (+25°/-50°)
Directivity (Q)	4.7
Directivity Index (DI)	6.2 dB
Rated Maximum SPL @ 1m	97 dB continuous pink noise, 103 dB peak
Rated Impedance	16 ohms (no transformer taps)
Recommended High-Pass Frequency	150 Hz
Transducer: Driver	60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former.
Enclosure Material	High impact polystyrene
Grille	Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Environmental	Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Termination	Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension	Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Ratings	Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions	128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.
Net Weight (ea)	0.7 kg (1.5 lbs)
Shipping Weight (pair)	2.0 kg (4.3 lbs)
Included Accessories	Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories	MTC-PC62 top panel / terminal cover
Colors	Available in black or white (-WH). Paintable.
