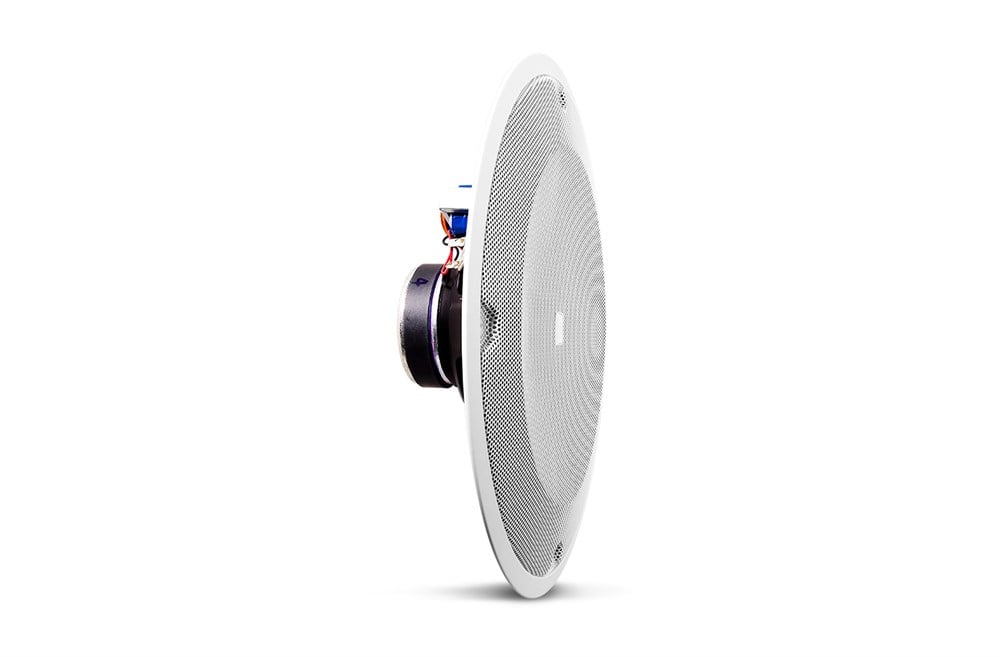

JBL 8138 Tavan Hoparlörü
JBL 8138 Tavan Hoparlörü

JBL 8138 (JBL)

Marka : JBL

JBL  8138 Tavan Hoparlörü

6W, 3W, 1.5W (70V' de0.75W)

ÖZELLİKLER



Component 200 mm (8 in) Full-Range, Dual-cone
Frequency Range (-10 dB) 95 Hz – 18 kHz
Coverage (2 kHz) 90° conical
Sensitivity (2.83V@ 1m) 97 dB (1 kHz - 8 kHz)
Driver Power Capacity 40W (160W peak), 2 hrs25W (100W peak), 100 hrs
70V/100V Transformer Taps 6W, 3W, 1.5W, (0.75W at 70V only)
Termination Bare Wire
Magnet 10 ounces (283 g)
Safety Agency Transformer is UL registered per UL1876
Installation Full assembly consists of 8138 speaker plus MTC-81BB8 backbox andMTC-81TB8 tile bridge. Four screw holes at industry standard 286 mm (11.25 in) mounting circle.
Dimensions (Diameter x Depth) 327 mm (12.9") diameter baffle x 84 mm (3.3") depth from back of baffle. Overall depth, 99 mm (3.9")
Mounting points 4 points on 286 mm (11.25 in) diameter mounting circle
Ceiling Cutout Dimension 300 mm (11.75") with tile bridge and backbox.228 mm (9.0") diameter as stand alone.
Net Weight 1.4 kg (3.0 lb)
Included Accessories Integral grille, 4 pcs M4 x 40 mm tapping screws
Optional Accessories MTC-81BB8 backcanMTC-81TB8 tile bridge
