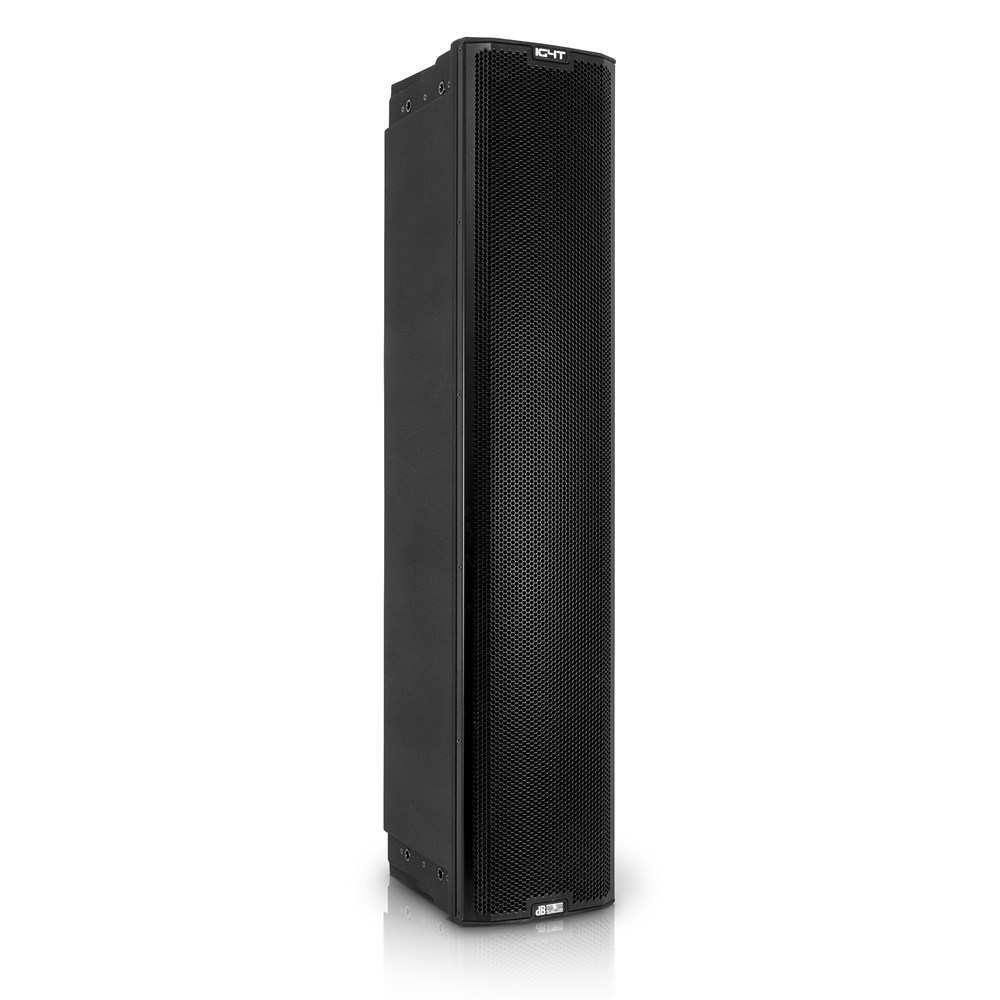

INGENIA IG4T (dBTechnologies)

2 Aktif  Aktif Hoparlör

Frequency Response [-10dB] 74- 20.000 Hz

Frequency Response [-6dB] 88 - 19.200 Hz

Max SPL132 dB

HF 1.4"

HF Voice Coil 3"

Directivity (HxV) 110 x 90° (+20°/- 70°)

HF Type Neodymium compression driver

Horn Vertical asymmetric

Crossover Frequency 1100 Hz

LF 4x6.5”

LF Voice Coil 1.5"

LF Type nNeodymium

Amplifier

Amp Technology Digipro® G3

Amp Class Class-D

Peak Power

1800 W

RMS Power

900 W

User Interface

OLED display + rotative knob w/switch

Self-rotating display

Yes

Positioning

EPD (Element Position Detection)

Display Mirroring

Yes

Processor

Controller

DSP 56 bit

AD/DA Converter

24bit/48kHz

System Presets

Factory presets + User defined

Limiter

Dual Active Peak, RMS, Thermal

DSP Processing

FIR Linear Phase

Input

Signal Input

1 x Combo IN (XLR + Jack 6.3mm)

Signal Out

1 x XLR link OUT

USB connector

Yes - mini USB

Mechanics

Housing

Polypropylene PP reinforced

Grille

FULL /Invisible screws

Flyable Yes

Handles

1x on top / 1x on bottom

Pole Mount

Yes

Width

195 mm (7.68 in)

Height

956 mm (37.64 in)

Depth

271 mm (10.67 in)

Weight

18.2 Kg (40 lbs.)
