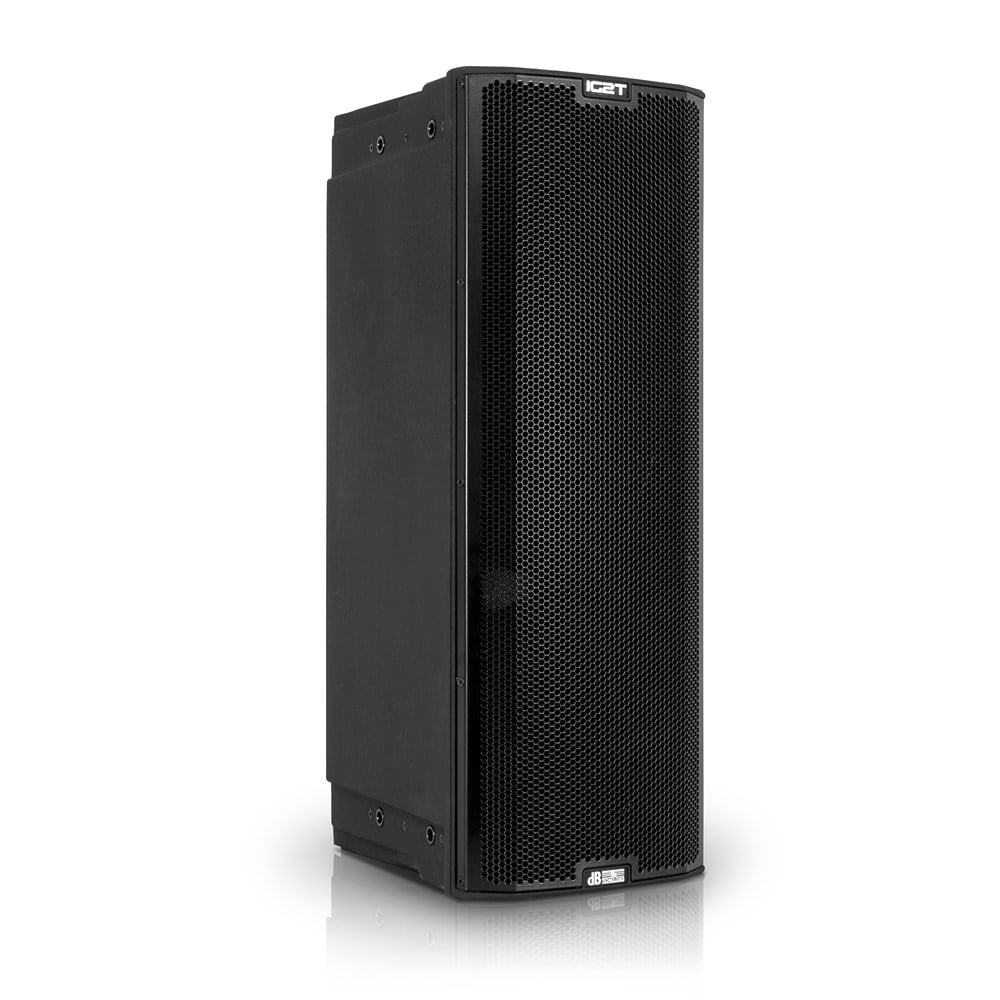

INGENIA IG2T (dBTechnologies)

Teknik Özellikleri

2 Aktif  Aktif Hoparlör







Acoustical data



Frequency Response [-10dB]

59- 20.000 Hz





Frequency Response [-6dB]

63- 19.200 Hz





Max SPL

128 dB





HF

1"





HF Voice Coil

1.4"





Directivity (HxV)

100 x 80° (+15°/- 65°)





HF Type

Neodymium compression driver





Horn

Vertical asymmetric





Crossover Frequency

1900 Hz





LF

2x8”





LF Voice Coil

2"





LF Type

Neodymium







Amplifier



Amp Technology

Digipro® G3





Amp Class

Class-D





Peak Power

800 W





RMS Power

400 W





User Interface

OLED display + rotative knob w/switch





Self-rotating display

Yes





Positioning

EPD (Element Position Detection)





Display Mirroring

Yes







Processor



Controller

DSP 56 bit





AD/DA Converter

24bit/48kHz





System Presets

Factory presets + User defined





Limiter

Dual Active Peak, RMS, Thermal





DSP Processing

FIR Linear Phase







Input



Signal Input

1 x Combo IN (XLR + Jack 6.3mm)





Signal Out

1 x XLR link OUT





USB connector

Yes - mini USB







Mechanics



Housing

Polypropylene PP reinforced





Grille

FULL /Invisible screws





Flyable

Yes





Handles

1x on top / 1x on bottom





Pole Mount

Yes





Width

228 mm (8.98 in)





Height

646 mm (25.43 in)





Depth

315 mm (12.40 in)





Weight

12.8Kg (28.22 lbs.)
