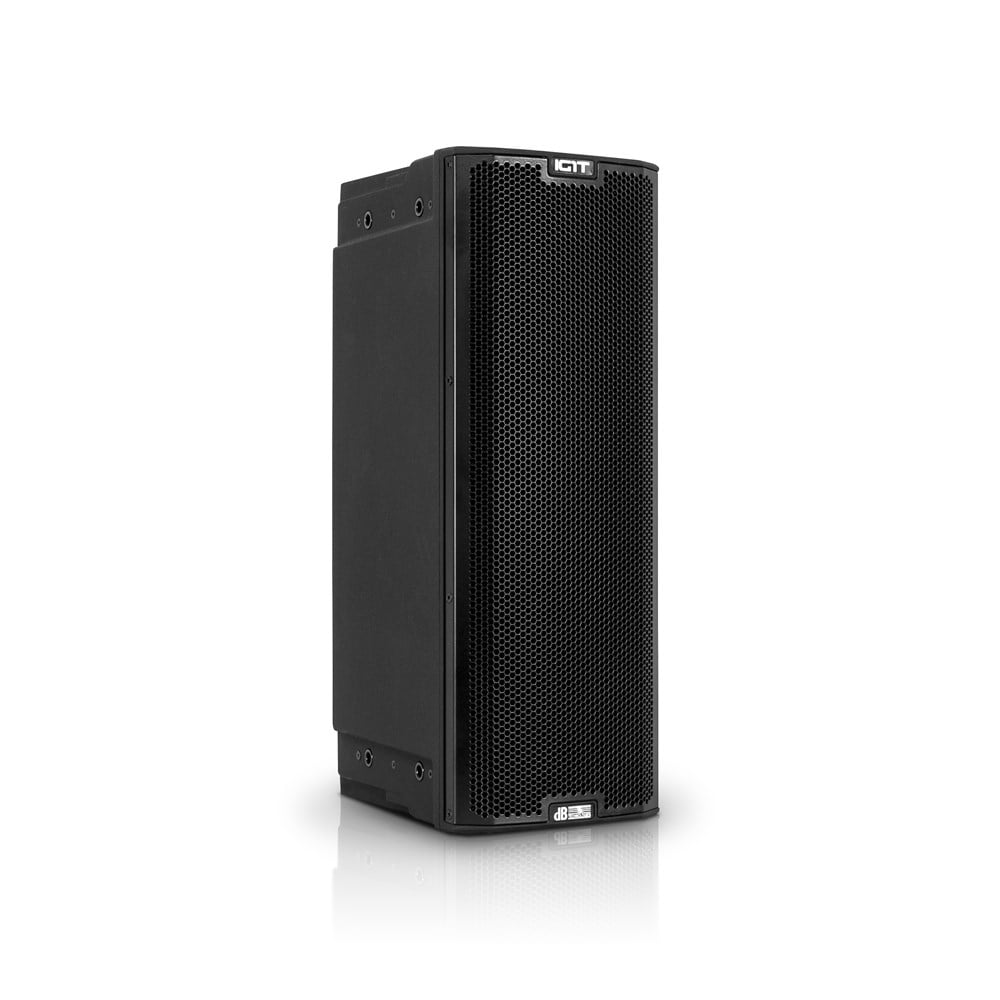

INGENIA IG1T (dBTechnologies)

Frequency Response [-6dB] 92 - 19.200 Hz

Max SPL 128 dB

HF 1"

HF Voice Coil 1.4"

Directivity (HxV) 100 x 80° (+15°/- 65°)

HF Type Neodymium compression driver

Horn Vertical asymmetric

Crossover Frequency 2100 Hz

LF 2x6.5”

LF Voice Coil 1.5"

LF Type Neodymium

Amplifier Amp Technology

Digipro® G3

Amp Class Class-D

Peak Power 800 W

RMS Power 400 W

User Interface OLED display + rotative knob w/switch

Self-rotating display

Yes

Positioning

EPD (Element Position Detection)

Display Mirroring

Yes

Processor

Controller

DSP 56 bit

AD/DA Converter

24bit/48kHz

System Presets

Factory presets + User defined

Limiter

Dual Active Peak, RMS, Thermal

DSP Processing

FIR Linear Phase

Input

Signal Input

1 x Combo IN (XLR + Jack 6.3mm)

Signal Out

1 x XLR link OUT

USB connector

Yes - mini USB

Mechanics

Housing

Polypropylene PP reinforced

Grille

FULL /Invisible screws

Flyable bYes

Handles

1x on top / 1x on bottom

Pole Mount

Yes

Width 195 mm (7.68 in)

Height 536 mm (21.10 in)

Depth 271 mm (10.67 in)

Weight 10.6Kg (23.37 lbs.)
