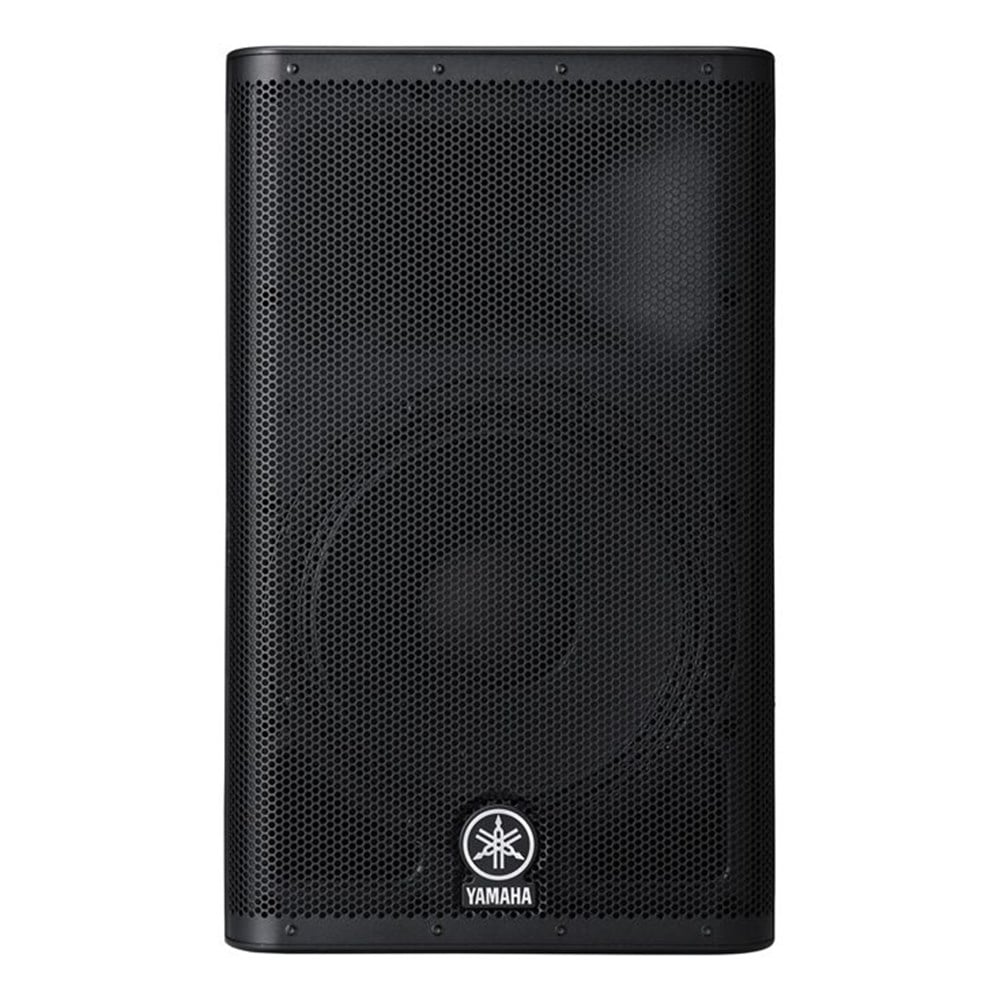

DXR 12 (DXR 12)

Marka : Yamaha

2 Yollu,12",Aktif Plastik Hoparlör

TEKNİK ÖZELLİKLER



Speaker type   12" 2-way, Bi-amp powered speaker, Bass-reflex type

Frequency range -10dB         52Hz - 20kHz

Nominal coverage H  90°

Nominal coverage V  60°

Components LF          Diameter:12" cone, Voice Coil:2.5", Magnet:Ferrite

Components HF         Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite

Crossover       FIR-X tuning™ (linear phase FIR filter)

Output power Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)

Maximum output level (1m; on axis)            132dB SPL

Processors      D-CONTOUR: FOH/MAIN, MONITOR, OFF

Power requirements   100V - 240V, 50Hz/60 Hz

Power consumption   110W

Dimensions (W-H-D) W) 362mm(H)601mm(D)350mm

Net weight      19.3kg

Others Material: ABS (Matte Finish, Black)
