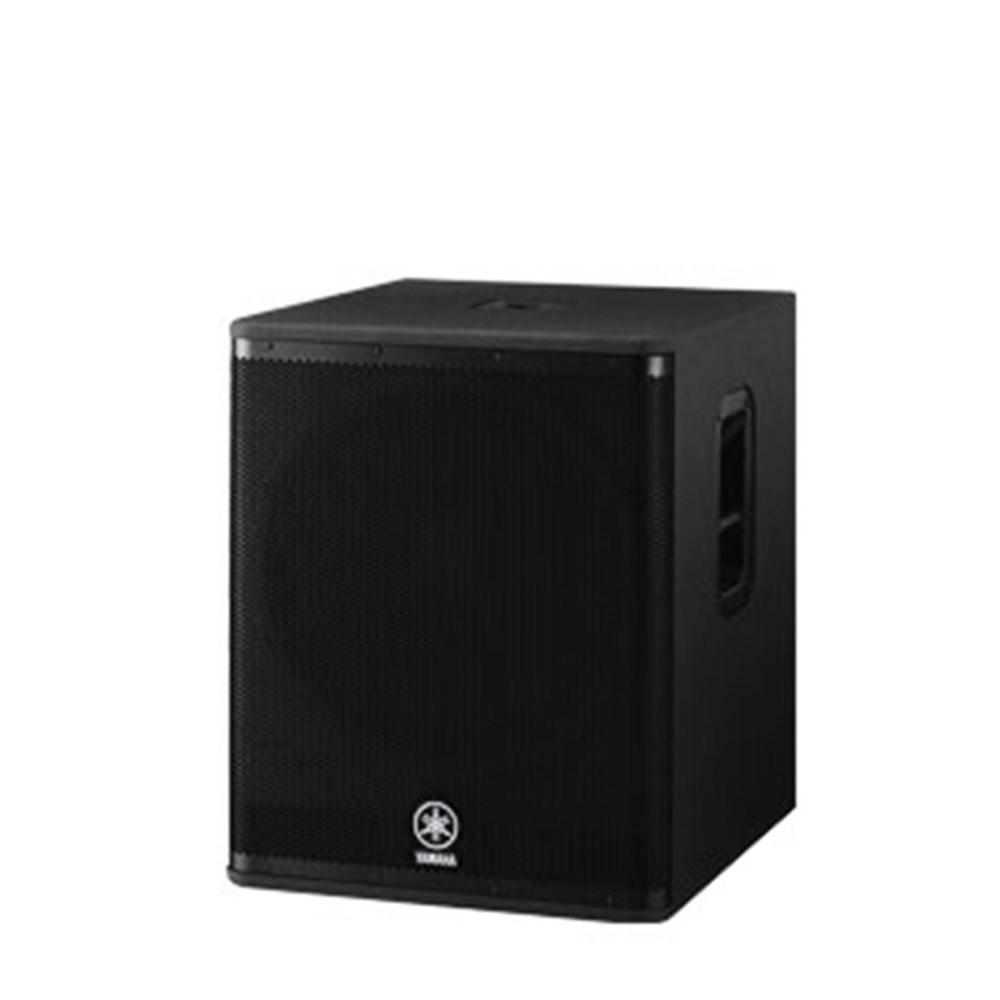

DSR118W (DSR118W)

Marka : Yamaha

18" Powered Speaker Bass-reflex Type

TEKNİK ÖZELLİKLER



System Type   18" Powered Speaker Bass-reflex Type

Frequency Range (-10dB)     40Hz ~ 130Hz

Frequency Response (-3dB)  50Hz ~ 110Hz

Measured Maximum SPL (peak)      IEC noise @ 1m 132dB SPL

Amplifier

Amplifier Type          Class-D

Power Rating  800W

Cooling           Natural Convection

Connectors Input        XLR-3-31 x2 (Balanced)

Connectors Output     XLR-3-32 x2 (Balanced) Parallel connection with INPUT

Connectors Power      AC inlet x1

Power Consumption 1/8Power          100W

Low-Frequency          18" cone

Magnet Materials       Ferrite Magnet

Voice Coil Diameter  3"

Dimension (W x H x D)        520×638×584 mm (20 4/8"x25 2/8"x23")

Weight            42.0kg
