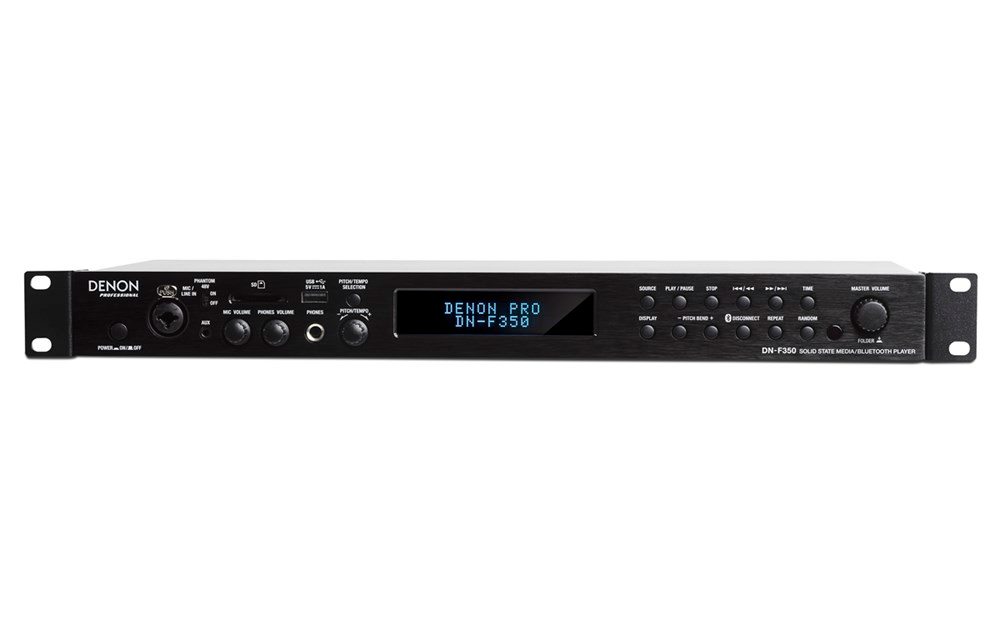

DN-F350 (DN-F350)

Solid-State Media Player with Bluetooth/USB/SD/Aux Inputs

Audio Specification

• Frequency Response: 20 Hz – 20 kHz (+/- 1.0dB)
• Dynamic Range: > 85 dB
• Signal-to-Noise Ratio: > 90 dB (A-weighted)
• Variable Pitch/Tempo Control: ±15%

Audio File Formats Supported

• WAV (44.1k, 16bit)
• MP3 (44.1k, from 64 to 320 kbit/s)
• MP2
• M4A (without DRM protection)
• WMA (without DRM protection)

Bluetooth Specification

• Version: v4.0 / v2.1 + EDR
• Profile: A2DP, AVRCP, HFP, HSP, SPP, OPP
• Range: Up to 50m
• Maximum Transmission Power: Class 2, 4 dBm
• Frequency: 2400 – 2500 MHz

Connectors

• (2) Balanced XLR outputs
• (1) Unbalanced RCA stereo output pair
• (1) Balanced XLR-1/4 input
• (1) 1/8” Aux (3.5 mm) input
• (2) USB ports
• (1) 1/4" Headphone output
• (1) IEC power input

General

• Input Voltage: 100–240 V, 50/60 Hz
• Fuse: 1A
• Consumption: 21 W
• Dimensions (WDH): 16.9 x 7.9 x 1.7” (430 x 200 x 43.6mm)
• Weight: 5 lbs. (2.3kg)
