DENON PROFESSIONAL AUDIO & VIDEO PLAYERS

ÖZELLİKLER

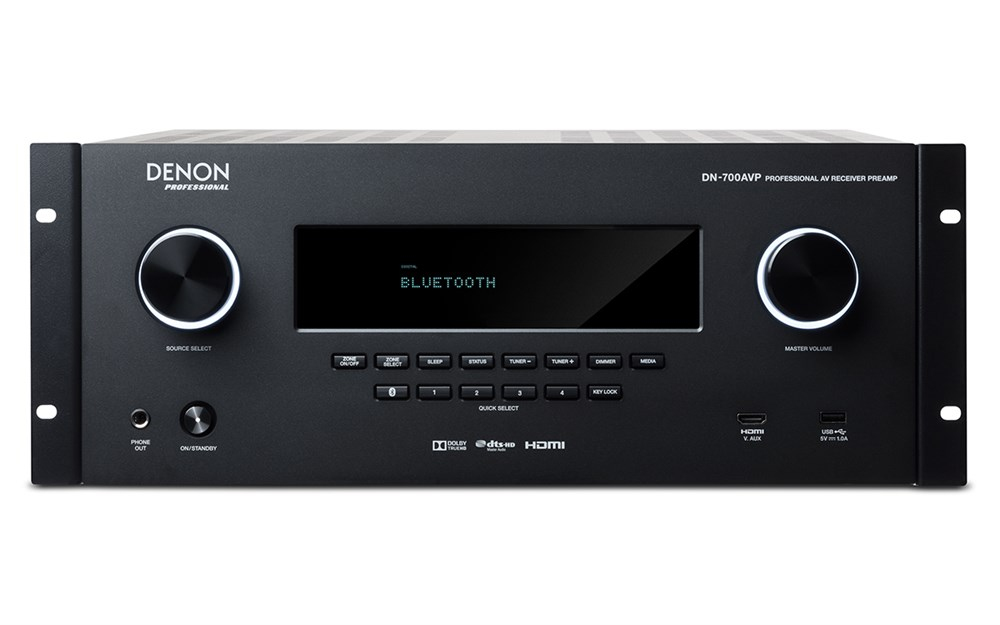

DENON DN-700 AVP



Professional AV Receiver Preamp

Bluetooth Specifications

  • Version: 4.0
  • Profile: A2DP, AVRCP
  • Maximum Transmission Power: -6dB ± 4dB, Class 2
  • Frequency: 2.4GHz - 2.48 GHz



FM Tuner

  • Frequency Range: 87.5 MHz - 108 MHz



USB

  • File System: FAT 16/32
  • Media Type: USB Flash Drive



Audio Specifications

  • Preamp Outputs: 7.1 Surround Sound
  • Level: -10dB or +4db
  • Frequency Response: 10Hz - 20kHz ± 1.0dB
  • Dynamic Range: 10kHz - 20kHz, A-weighted >90dB
  • Signal-to-Noise: 1 kHz, 0 dB, A-weighted >90dB
  • Distortion: <0.006%
  • T.H.D: 1 kHz, 0 dB, A-weighted <0.01%



  • Supported Surround Formats: Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS ES
  • Supported File Types: WMA, MP3, WAV, MPEG-4 AAC, and FLAC files
  • Analog Input
  • Unbalanced RCA: Nominal level -10 dBV (at full scale: -16dB)
  • Minimum Input Level: -19 dBV or higher
  • Input Impedance: 47 kΩ ± 10%, unbalanced



Digital Inputs

  • Coaxial: RCA (IEC-60958 Type II)
  • Optical: Toslink (IEC-60958 Type II)



Composite Video

  • Input/Output Level: 1V/p-p
  • Impedance: 75 Ω
  • Frequency Response: 5 Hz - 10 MHz



Component Video

  • Input Level:
  • Y signal, 1Vp-p
  • Pb/Cb signal, 0.7Vp-p
  • Pr/Cr signal, 0.7Vp-p





Impedance

  • Y signal, 75 Ω
  • Pb/Cb signal, 75 Ω
  • Pr/Cr signal, 75 Ω
  • Frequency Response: 5 Hz - 60 MHz
  • HDMI: Version 1.4b (3D and ARC supported)

Power

  • Connection: IEC
  • Input Voltage: 100 - 120V / 220-240V
  • Consumption: 30W
  • Operating Temperature: 41° F - 113° F
  • Operating Humidity: 25 - 85%, non-condensing
  • Dimensions: 19.00"w x 13.66"d x 6.93"h (483 x 347 x 176mm)
  • Weight: 19.1 lbs (8.66kg)
