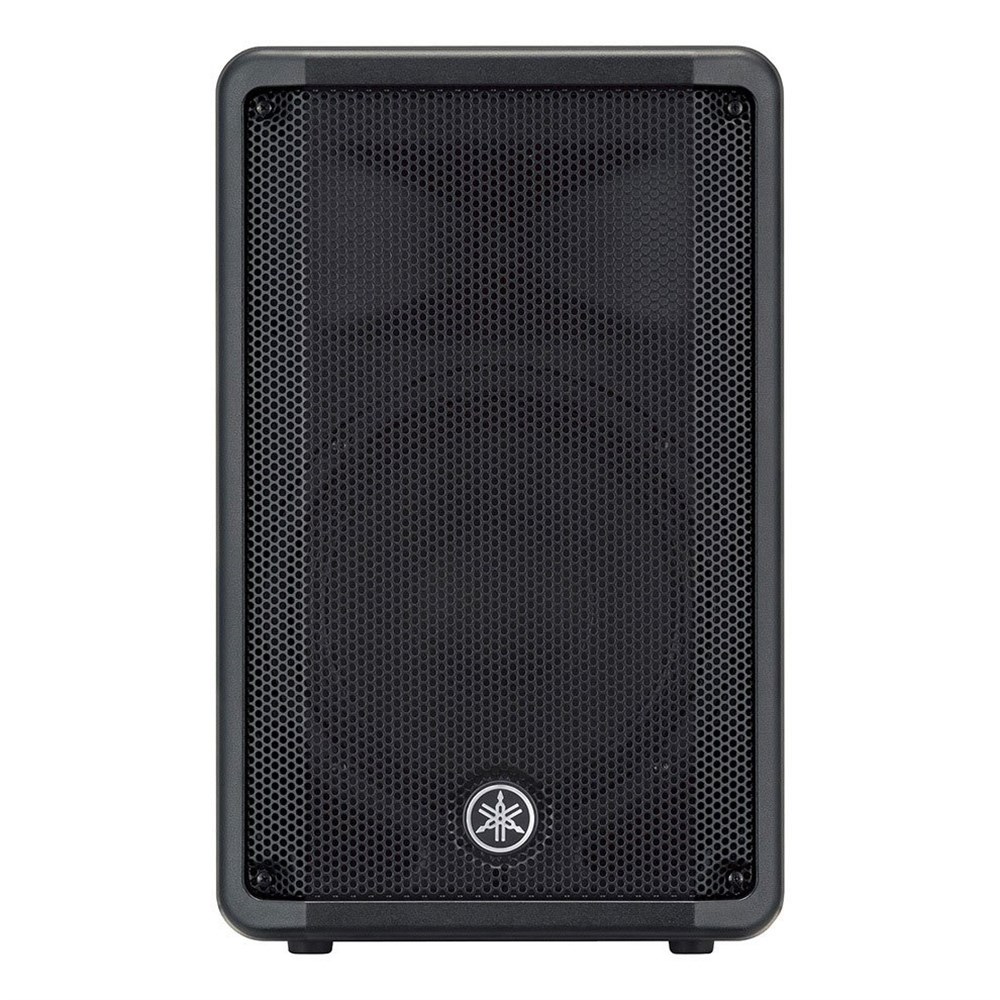

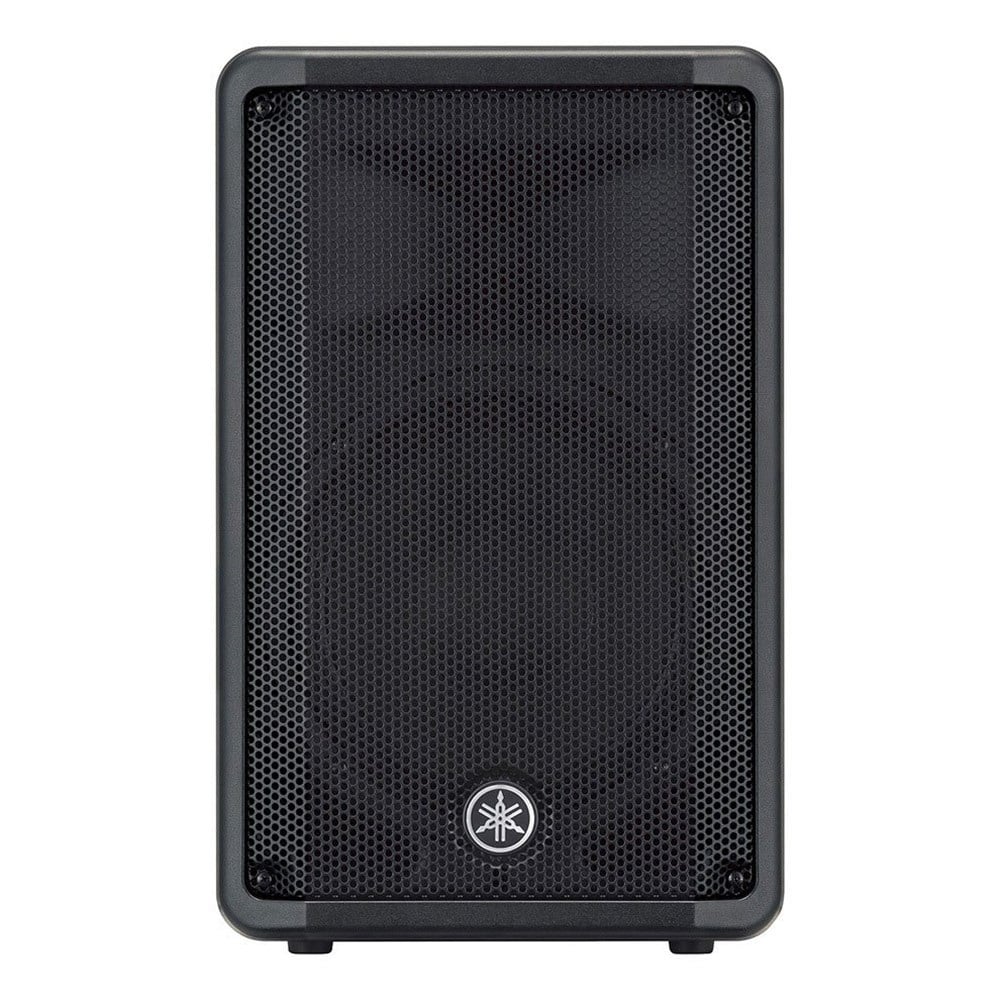

DBR10 (DBR10)

Marka : Yamaha

10" 2-yönlü Amfili Hoparlör

TEKNİK ÖZELLİKLER

Hoparlör Tipi      2-way, Bi-amp powered speaker, Bass-reflex type

Frequency range (-10dB)              55Hz – 20kHz

Nominal coverage (H)    90°

Nominal coverage (V)     60°

Components (LF)             Diameter:10" cone, Voice Coil:2", Magnet:Ferrite

Components (HF)            Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite

Crossover           2.1kHz: FIR-X tuning™ (linear phase FIR filter)

Output power   Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)

Maximum output level (1m; on axis)       129dB SPL

I/O connectors  INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)

Processors          D-CONTOUR: FOH/MAIN, MONITOR, OFF

Heat dissipation               Fan cooling, 4 speeds

Power requirements       100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz

Power consumption        60W(1/8 Power Consumption), 18W(Idle)

Cabinet material              Plastic

Finish     Black

Handle  Top x 1

Flying and mounting hardware  Bottom x 2 (Fit for M8 x 15 mm eyebolts)

Pole socket        35mm (Bottom x 1)

Dimensions         308mm x 493mm x 289mm

Net weight         10.5 kg
