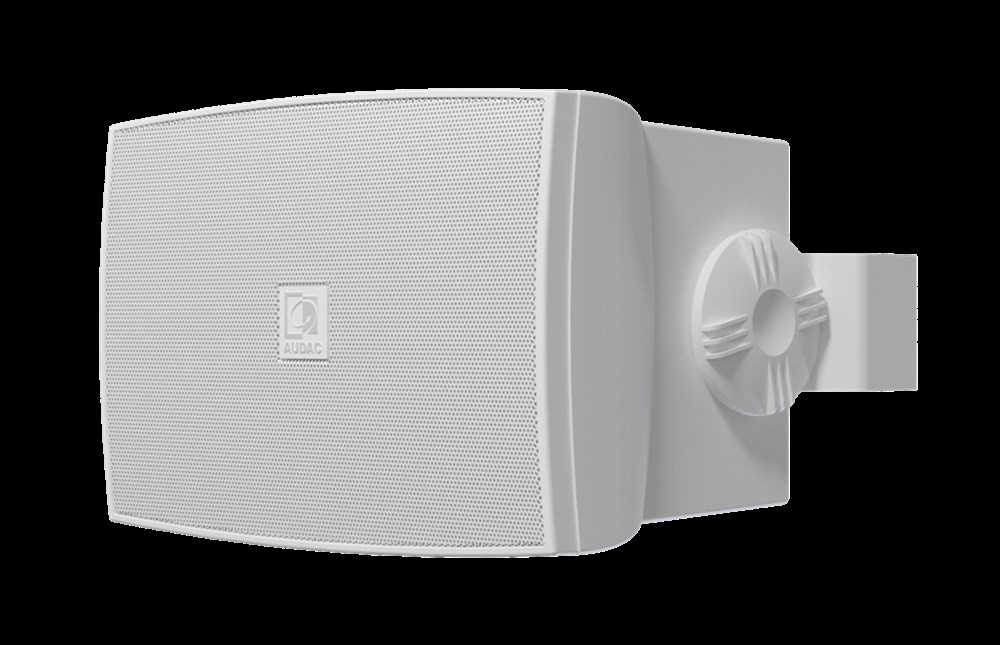

AUDAC WX502MK2/OW
AUDAC WX502MK2/OW
AUDAC WX502MK2/OW
AUDAC WX502MK2/OW

AUDAC WX502MK2/OW (WX502MK2/OW)

Marka : AUDAC

OUTDOOR DIŞ ORTAM KABİN TİPİ HOPARLÖRLER 100V 8 ohm - WX SERİSİ

Fiyat için



Ankara: 0312 309 52 26





Kayseri: 0352 222 00 08



ÖZELLİLER



*  AUDAC WX502MK2/OW





Connectors Waterproof AWX-5 connector
Impedance 8 Ω
Ingress Protection rating IP55
Max. Power 100 W
Sensitivity (1W/1m) 87 dB
Speaker type 2-way
RMS Power 50 W
Crossover Frequency 2.5 kHz
Type Passive built-in
Drivers HF 1”
LF 5”
Frequency Range (-10 dB) 55 Hz - 20 kHz
Response (± 3 dB) 70 Hz - 18 kHz
Line Transformer Tappings 1 40 W / 250 Ω
2 20 W / 500 Ω
3 10 W / 1000 Ω
Sound Pressure (Max. W/1m) @ 100 V 102 dB
@ 8 Ω 104 dB
Dispersion Horizontal 110°
Vertical 110°
PRODUCT FEATURES
Dimensions 212 x 147 x 136 mm (W x H x D)
Weight 2.540 kg
Operating temperature -25 °C ~ 70 °C
Construction ABS
Mounting & handling Mounting bracket
Front finish Aluminium grill
Colours Black (RAL9005) (WX502MK2/OB)
White (RAL9003) (WX502MK2/OW)
Accessories Included Mounting bracket
5-pin connection cable (70 cm)
Optional AU570120005 - 5-pin cable 0.5 m
AU570120025 - 5-pin cable 2.5 m
AU570120050 - 5-pin cable 5 m
