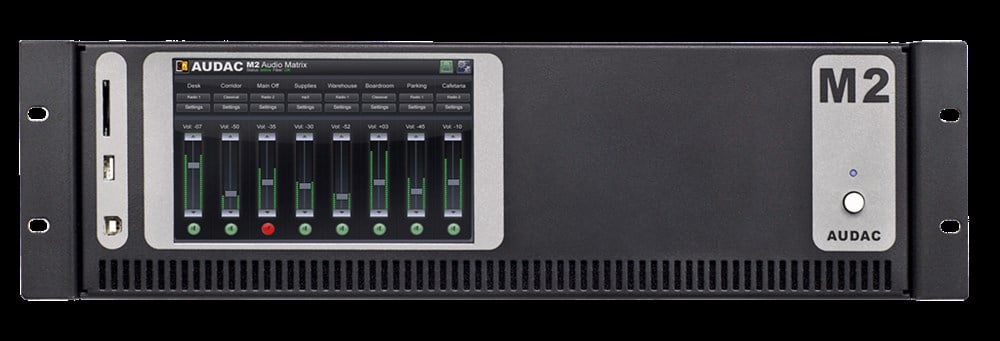

AUDAC M2 (M2)

Marka : AUDAC

AUDIO MATRIX SYSTEMS

Fiyat İçin:

Ankara: 0312 309 52 26

Kayseri: 0352 222 00 08

ÖZELLİLER

* AUDAC M2

Control			Front panel (M2DIS Display option)
			RS-232
			TCP/IP (RJ45)
			Wall panel (RS-485)
			Audac Touch™
			Web (Flash)
Socket Connections (AUDAC Touch™)			5 sockets
Power	Supply		100 ~ 240 V AC / 50 ~ 60 Hz
Inputs	Balanced Mic./Line	Type	8 x Balanced Stereo Input (Mic./Line)
		Connector	3-pin Euro Terminal Block (Pitch - 3.81 mm)
	Unbalanced Stereo	Type	4 x Stereo Unbalanced Line
		Connector	RCA
	Balanced Priority Audio	Type	2 x Balanced Priority Audio Input (Line)
		Connector	3-pin Euro Terminal Block (Pitch - 5.08 mm)
	Peripheral Interface	Type	10 x Peripheral Interface Input
		Connector	RJ45
	Priority Contact	Type	2 x Priority Contact Input
		Connector	2-pin Euro Terminal Block (Pitch - 5.08 mm)
	Contact	Type	8 x Contact Input
		Connector	9-pin Euro Terminal Block (Pitch - 5.08 mm)
Outputs	Balanced Stereo	Type	8 x Balanced Stereo outputs
		Connector	3-pin Euro Terminal Block (Pitch - 3.81 mm)
	Power Amplifier	Type	8 x Power Amplifier outputs (option)
		Connector	4-pin Euro Terminal Block (Pitch - 5.08 mm)
	Relay	Type	8 x Relay outputs (NO/NC)
		Connector	3-pin Euro Terminal Block (Pitch - 3.81 mm)
