AUDAC CPA12
AUDAC CPA12
AUDAC CPA12

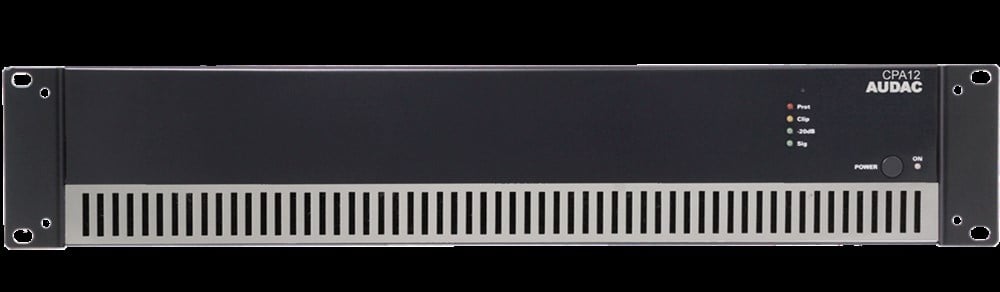

AUDAC CPA12 (CPA12)

Marka : AUDAC

CPA SERİSİ TEK KANAL 100V AMPLİFİKATÖRLER





Fiyat İçin:

Ankara: 0312 309 52 26



Kayseri: 0352 222 00 08



ÖZELLİLER

 *  AUDAC  CPA12







RMS Power 120 W
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 1%
Technology Class A/B
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Dual speed controlled FAN
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 70 Hz - 18 kHz
Power Supply Conventional (Transformer)
Source 230 ~ 240 V AC / 50 ~ 60 Hz (110~115 V AC / 50~60 Hz after connection change)
Inputs Sensitivity (1W/1m) -12 dB ~ 0 dB
Impedance 10 kΩ balanced
Connector XLR female with Male Linkthrough
Outputs Voltage / Impedance 100 V / 83 Ω
70 V / 42 Ω
21.9 V / 4 Ω
Connector 4-pin Euro Terminal block (Pitch - 5.08 mm with locking)
PRODUCT FEATURES
Dimensions 482 x 88 x 330 mm (W x H x D)
Weight 10.500 kg
Mounting 19”
Unit height 2 HE
Construction Steel
Colours Black
Accessories Included 4-pin Euro Terminal Block outputs connector
2-pin Euro Terminal Block 24V Power connector
Optional CPE100 Rack mount handles
