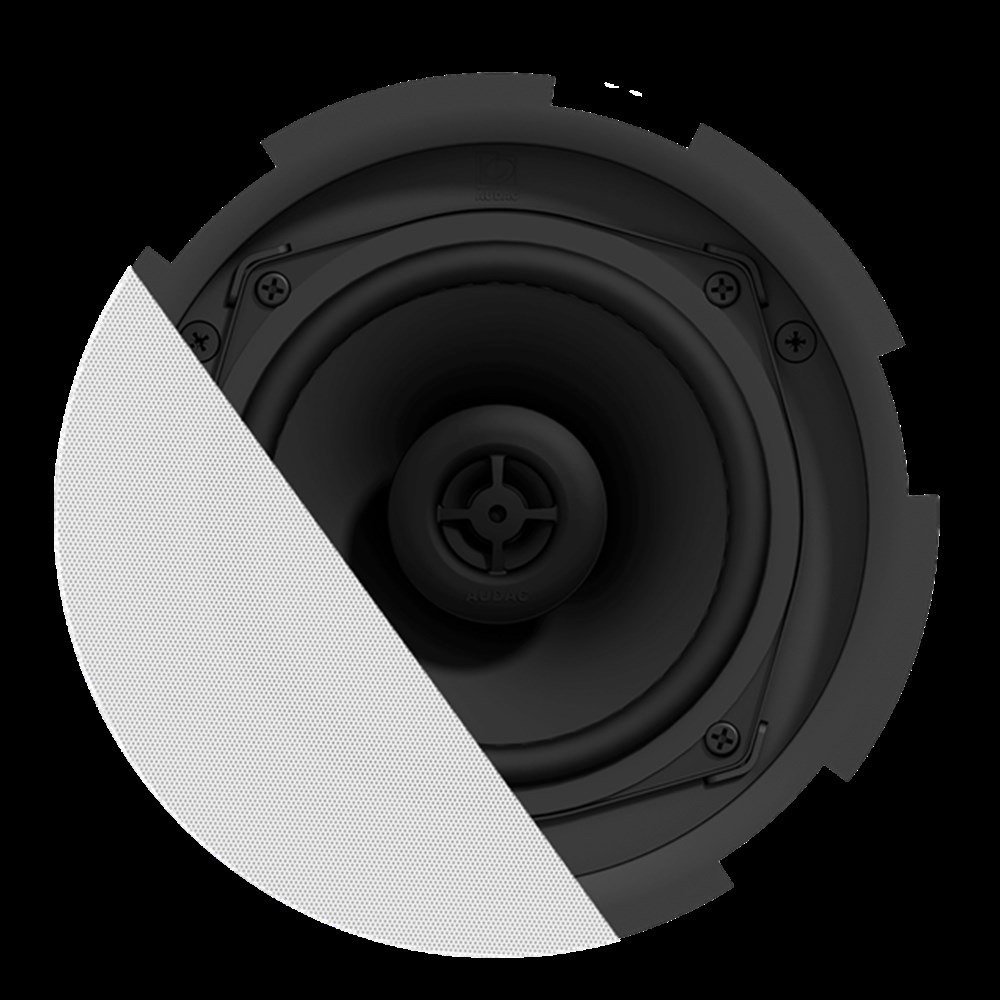

AUDAC CIRA524/W
AUDAC CIRA524/W
AUDAC CIRA524/W
AUDAC CIRA524/W
AUDAC CIRA524/W

AUDAC CIRA524/W (CIRA524/W)

Marka : AUDAC

ALÇIPAN TİPİ HOPARLÖRLER

Fiyat için



Ankara: 0312 309 52 26





Kayseri: 0352 222 00 08



ÖZELLİLER

 *  AUDAC CIRA524/W







Max. Power 60 W
RMS Power 30 W
Sensitivity (1W/1m) 87 dB
Speaker type 2-way coaxial
Impedance 16 Ω (CIRA530D)
8 Ω (CIRA506 & CIRA524)
Connectors Multi-tap Fast-con™ connections
Sound Pressure (Max. W/1m) @ 100 V 102 dB
Frequency Response (± 3 dB) 60 Hz - 20 kHz
Range (-10 dB) 45 Hz - 20 kHz
Dispersion Conical 145°
Drivers LF 5 ¼" Woofer
HF 1”
Line Transformer Tappings 1 6 W - 1667 Ω (CIRA506)
24 W - 417 Ω (CIRA524)
2 3 W - 3333 Ω (CIRA506)
12 W - 833 Ω (CIRA524)
3 1.5 W - 6667 Ω (CIRA506)
6 W - 1667 Ω (CIRA524)
PRODUCT FEATURES
Cut-out measurement 170 mm (Ø)
Dimensions 193 x 83 mm (Ø x D)
Weight 1.10 kg (CIRA506)
1.15 kg (CIRA524)
1.05 kg (CIRA530D)
Operating temperature -20 °C ~ 60 °C
Construction ABS
Front finish TwistFix™Borderless finely perforated steel grill
Mounting QuickFit™ mounting system
Colours White (RAL9003) (CIRA506/W, CIRA524/W & CIRA530D/W)
Built-in depth 83 mm (CIRA524)
75 mm (CIRA506 & CIRA530D)
Dimensions 193 mm (Ø)
