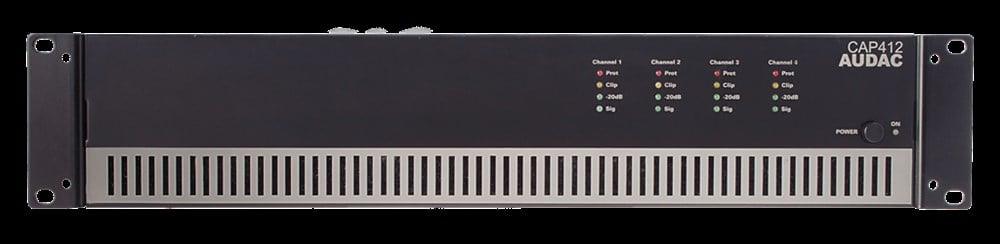

AUDAC CAP412 (CAP412)

Marka : AUDAC

CAP4 SERİSİ 4 KANAL 100V AMPLİFİKATÖR

Fiyat İçin:

Ankara: 0312 309 52 26

Kayseri: 0352 222 00 08

ÖZELLİLER

* AUDAC CAP412

RMS Power		4 x 120 W
Signal / Noise		> 100 dB
THD+N (@ 1 kHz)		< 0.3% (1/2 Rated Power)
Crosstalk (@ 1 kHz)		< 80 dB
Technology		Class-D
Common mode rejection ratio		70 dB
Protection		DC Short circuit
		Over heating
		Over load
		Signal limiting
Cooling		Temperature controlled FAN
Operating temperature		0° ~ 40° @ 95% Humidity
Frequency	Response (± 3 dB)	50 Hz - 22 kHz
Power	Supply	Switching mode
	Source	100 ~ 240 V AC / 50 ~ 60 Hz
Inputs	Sensitivity (1W/1m)	-0.5 dB ~ 10.5 dB
	Impedance	10 kΩ balanced
	Connector	XLR female with Male Linkthrough
Outputs	Voltage / Impedance	100 V / 83 Ω
		70 V / 42 Ω
		4 Ω
	Connector	4-pin Euro Terminal Block (Pitch - 5.08 mm)

PRODUCT FEATURES
Dimensions		482 x 88 x 420 mm (W x H x D)
Weight		14.800 kg
Mounting		19”
Unit height		2 HE
Construction		Steel
Colours		Black
Accessories	Included	4 x 4-pin Euro Terminal Block outputs connector
	Optional	CPE100 Rack mount handles
