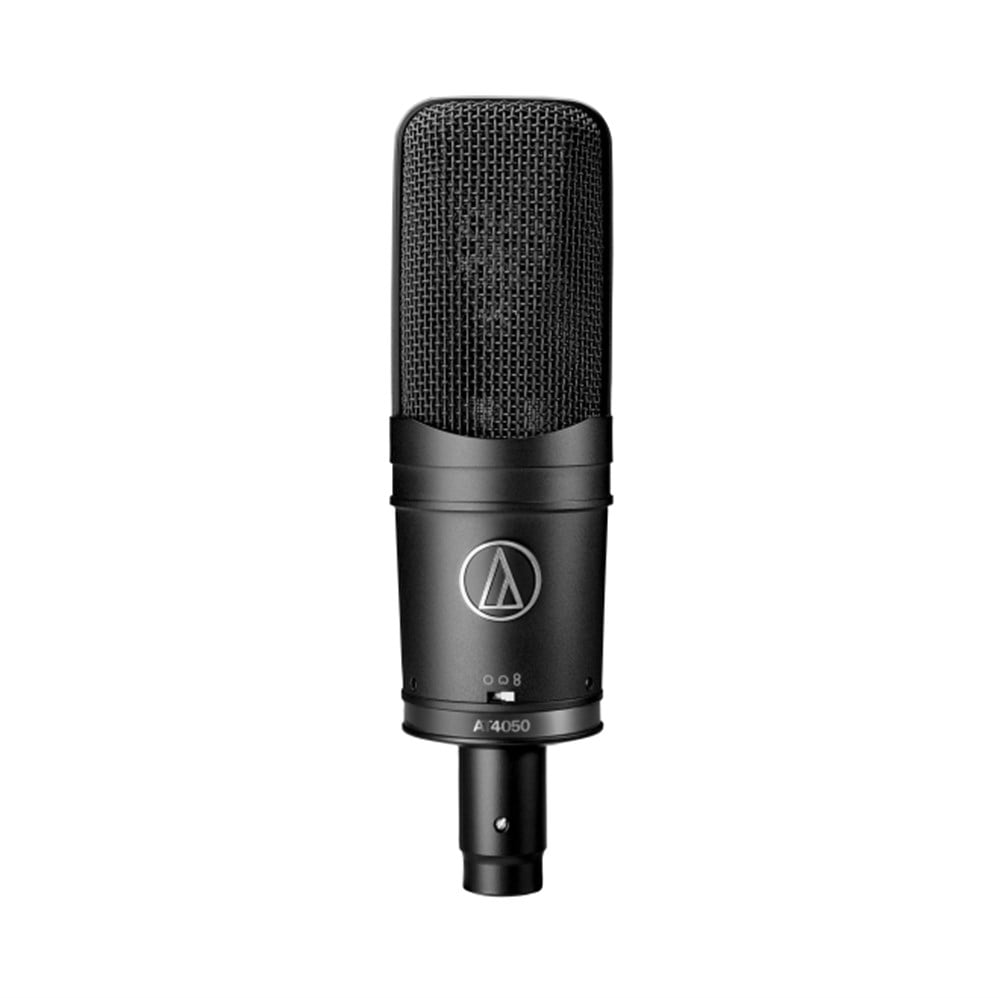

AT4050SM (Audio Technica)

Multi-pattern condenser  large diaphragm microphone

ELEMENT Externally-polarized (DC bias) condenser
POLAR PATTERNS Cardioid,
Omnidirectional,
Figure-of-eight
FREQUENCY RESPONSE 20-18,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY -36 dB (15.8 mV), re 1V at 1 Pa
IMPEDANCE 100 ohms
MAXIMUM INPUT SOUND LEVEL 149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)
NOISE 17 dB
DYNAMIC RANGE (typical) 132 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 77 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 48V DC, 4.2 mA typical
SWITCHES Polar selection;
Flat, roll-off;
10 dB pad (nominal)
WEIGHT 18.0 oz (510 g)
DIMENSIONS 7.40" (188.0 mm) long,
2.10" (53.4 mm) maximum body diameter
OUTPUT CONNECTORS Integral 3-pin XLRM-type

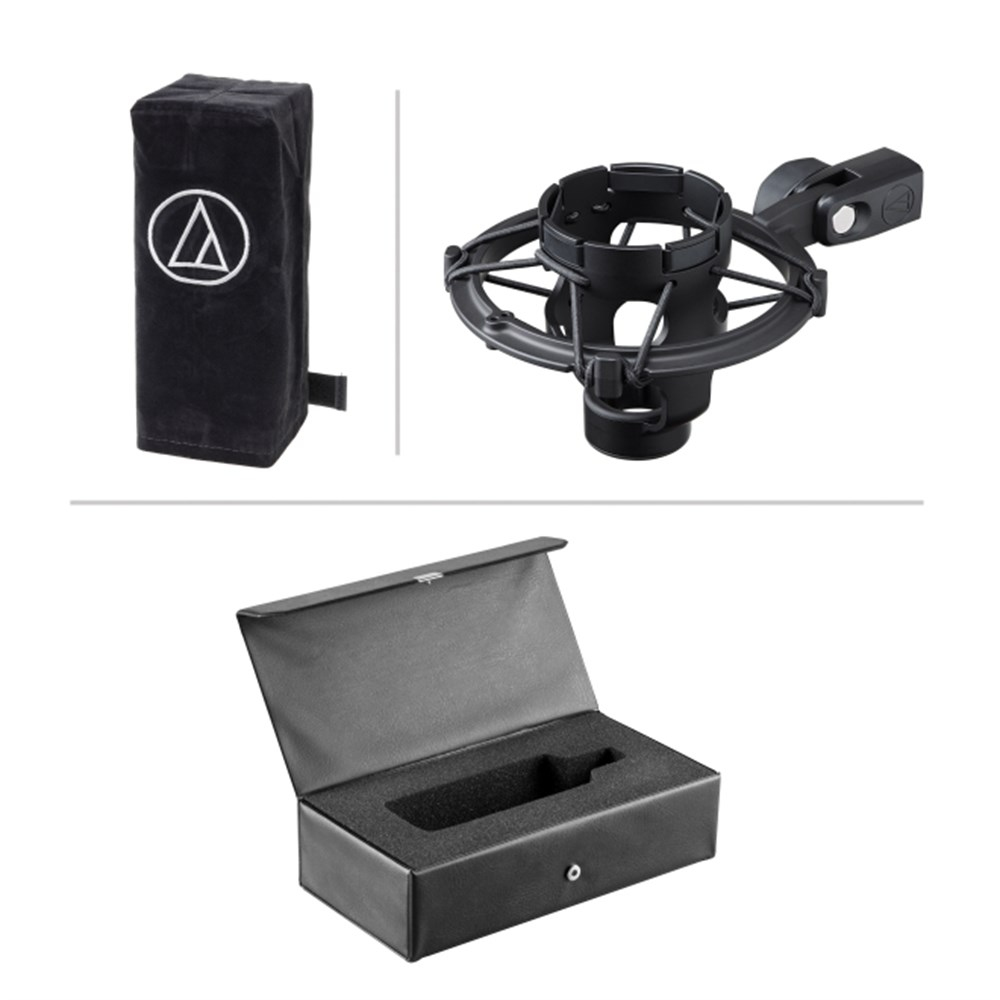

ACCESSORIES FURNISHED AT8449a shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
AUDIO-TECHNICA CASE STYLE R1
