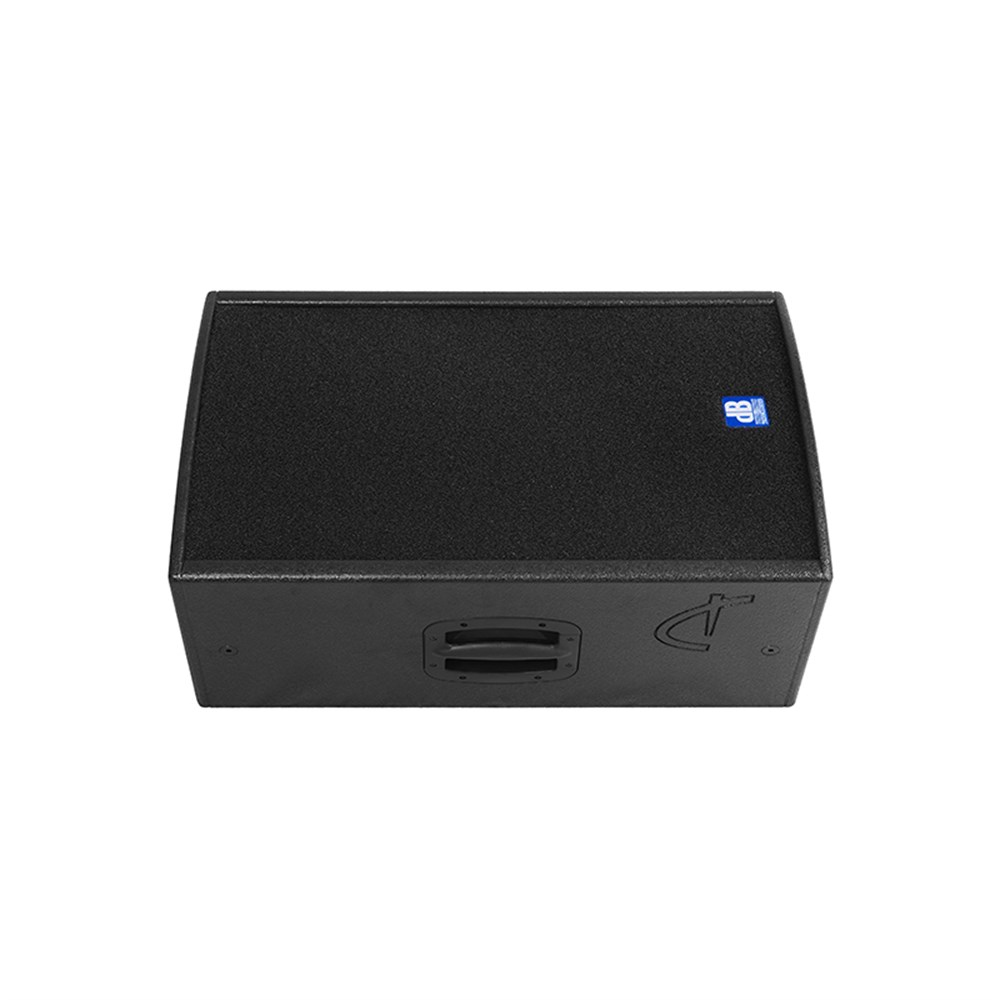

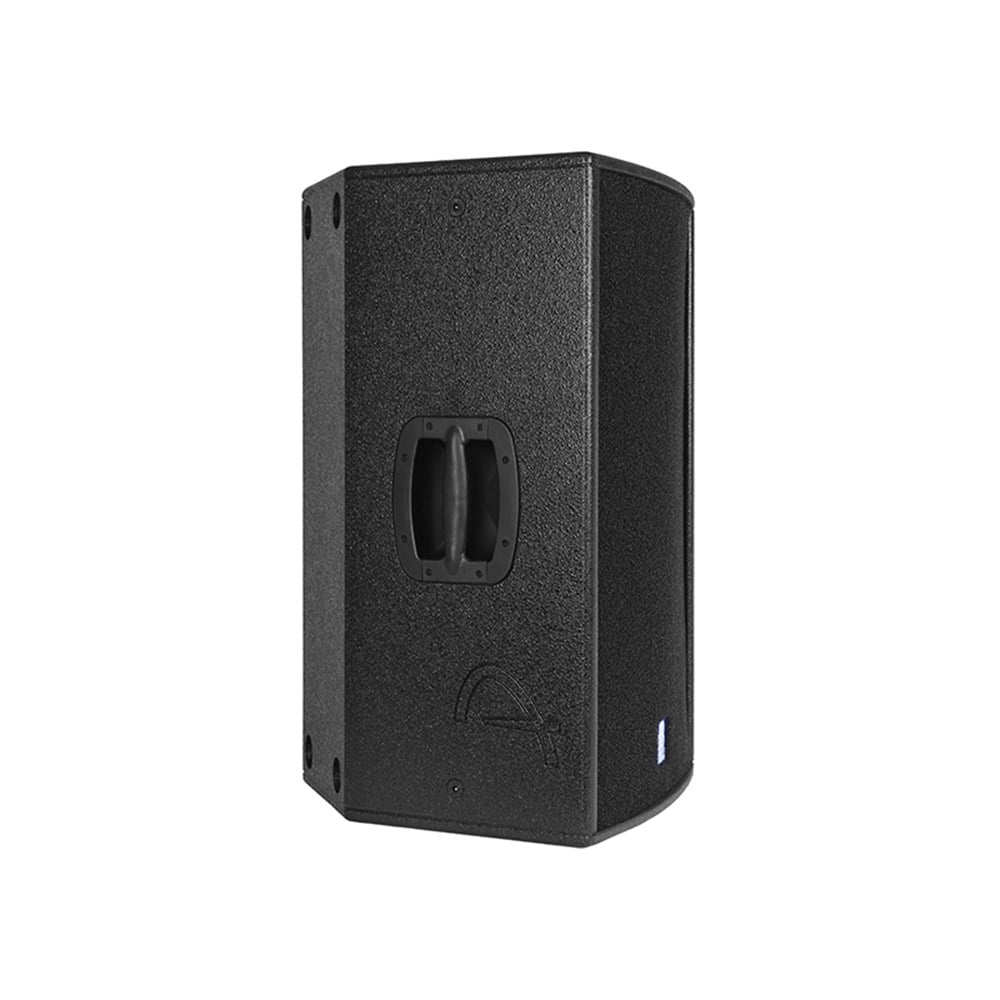

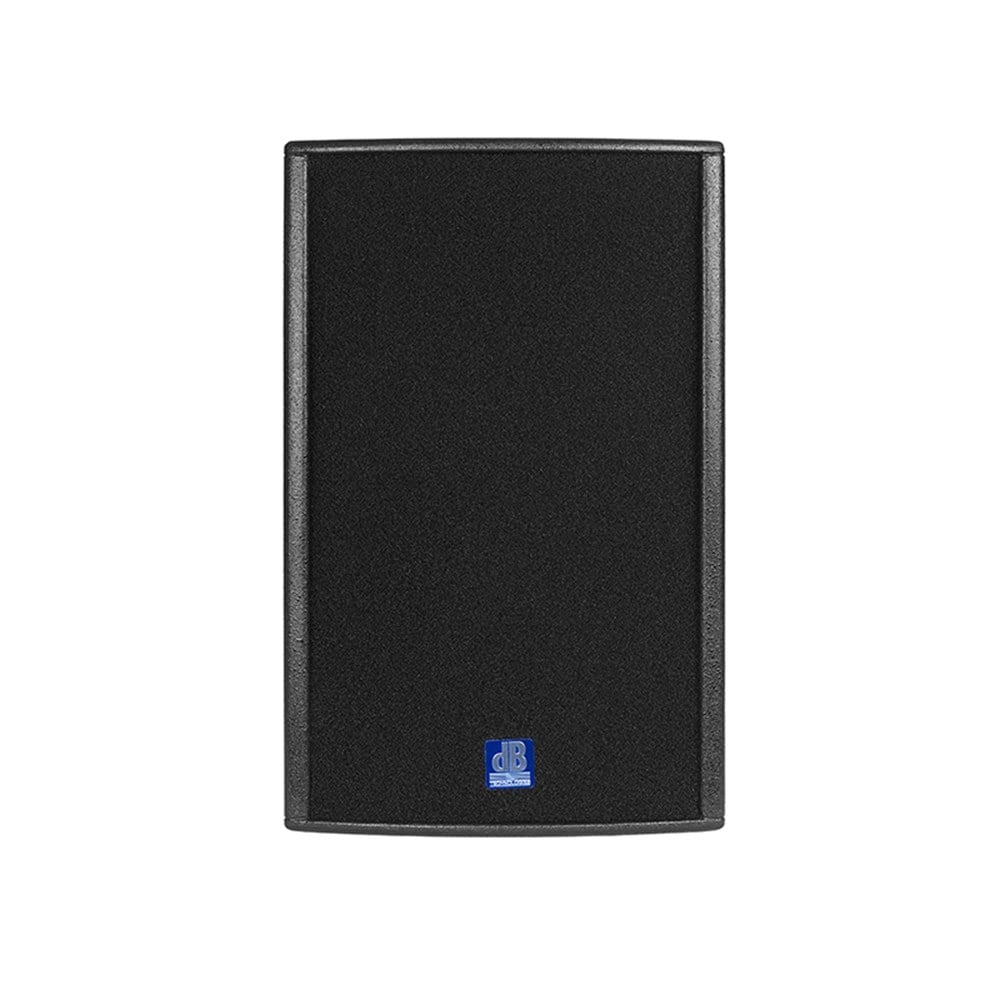

ARENA 15 (ARENA 15)

TEKNİK ÖZELLİKLER

Speaker Type  2-Way Passive Speaker

ACOUSTICAL DATA

Nominal Power Rating          400 W/RMS

Program Power Rating           800 W

Impedance      8 Ohms

Frequency Response [+/- 3dB]          80 - 19.000 Hz

Max SPL        129 dB

HF       1 “

Driver Protection        PTC

Directivity      90x70 °

Horn    CD Horn

Rotatable Horn           YES

Crossover Frequency (passive)          2100 Hz

LF       10 “

Voice Coil LF 2 “

INPUT

Signal Input    1x Speakon (Pin 1+=+) (Pin 1-=-)

Signal Output 1x Speakon (Pin 1+=+) (Pin 1-=-)

MECHANICS

Housing          Multiplex birch plywood

Pole mount:    36mm

Angles Up      Monitor use 45 °

Rigging Points            12 x M8

Dimension WxHxD   458 mm.710 mm.453 mm

Weight            23,7 kg
