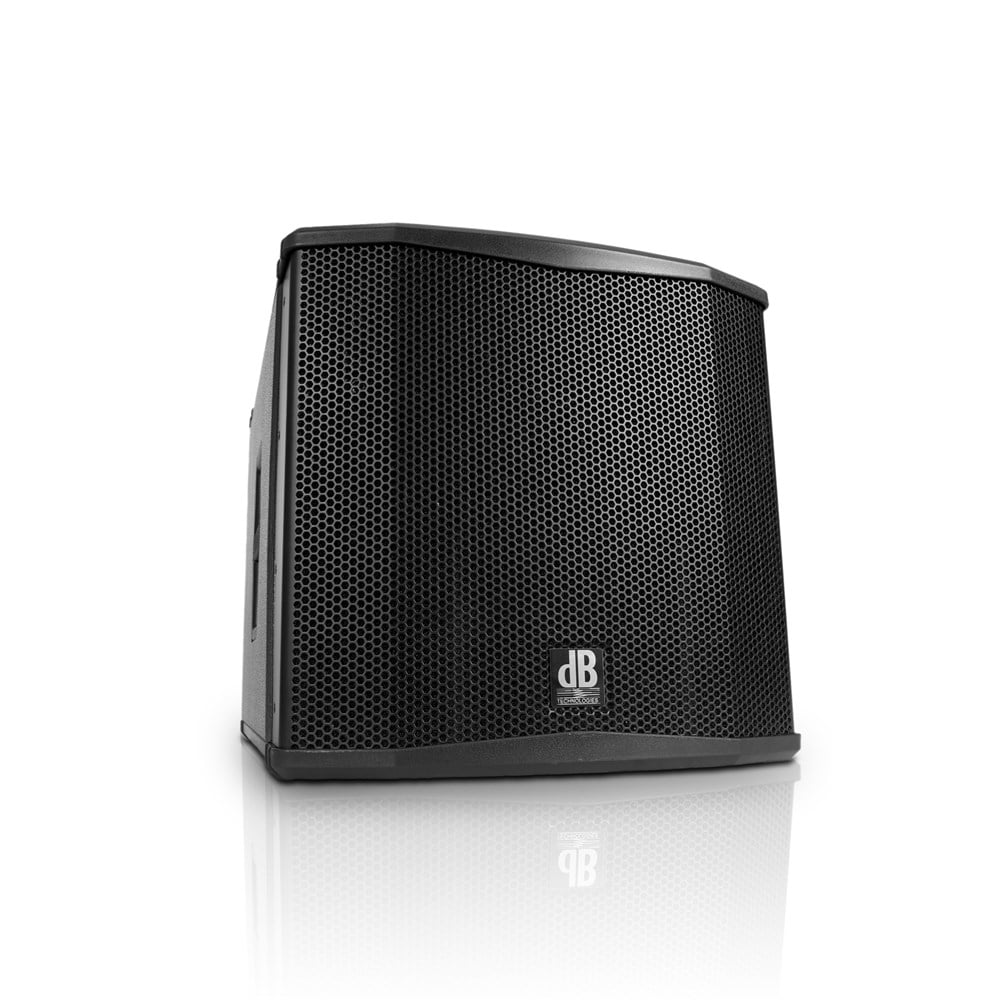

SUB 15H (dBTechnologies)

TEKNİK ÖZELLİKLER

Speaker Type: Semi Horn-loaded Active Subwoofer

ACOUSTICAL DATA

Frequency Response [-10dB]:           35 - 150 Hz

Max SPL:       133 dB

Directivity:     omnidirectional

LF:      15 "

Voice Coil LF:           3 "

AMPLIFIER

Amp Technology:       Digipro G3™

Amp Class:     Class D

Power PRG:   1000 W

Peak Power:    1400 W

Power supply: 700 W SMPS with PSU Auto-range (110V~ and 220V~)

PROCESSOR

Controller:      DSP 56 bit

AD/DA Coverters:     24 bit/48 kHz

Limiter:           Dual Active, RMS/Peak, Thermal

Crossover Frequency: 90, 120 Hz

LF-Xover out slope:   24 dB/Octave

INPUT

Signal Input:   2x XLR

Signal Output:            2x XLR X-Over Out/Link Out

Housing:         Birch plywood, Black PVC cover

Dimension WxHxD   524x511x695mm

Weight:           31.5 kg.
