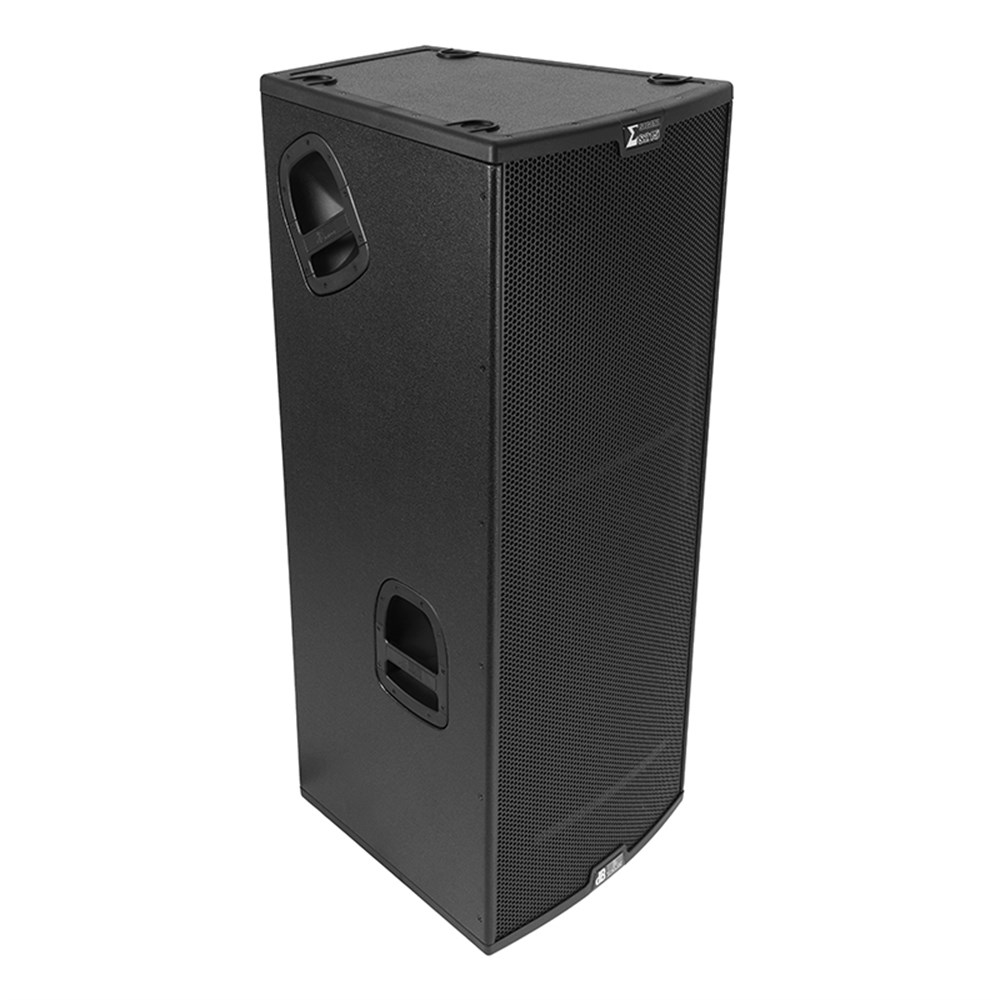

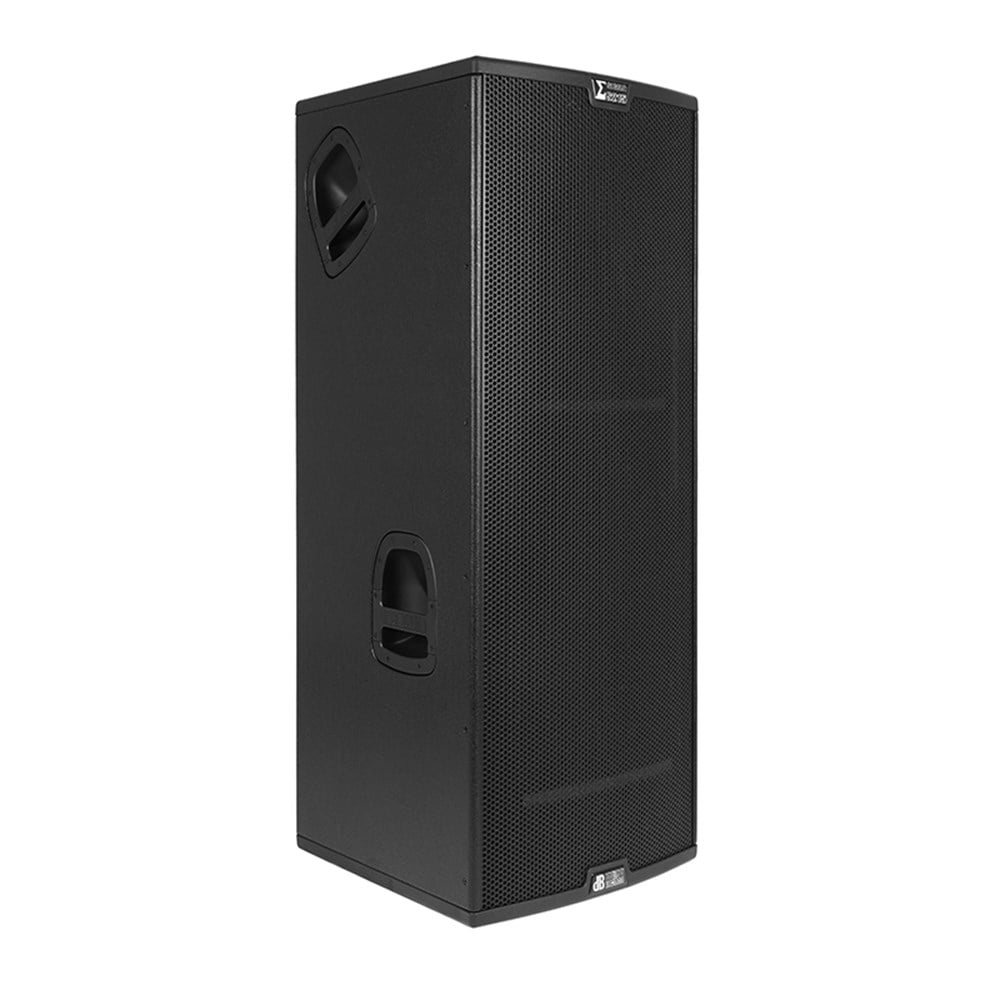

SIGMA S215 (dBTechnologies)

TEKNİK ÖZELLİKLER

Speaker Type  Quasi 3-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB] 42 - 20.000 Hz

Max SPL        139 dB

HF       1.4"

Type HF         Titanium Compression driver

Voice Coil HF            2.8"

Directivity      60 x 40 °

Horn    CD Horn

LF       2x15" (with phase plug)

Voice Coil LF 3"

AMPLIFIER

Amp Technology        Digipro® G2

Amp Class      Class D

Power PRG    1400 W

Peak Power     2800 W

PROCESSOR

Controller       DSP 24bit/48kHz

System Presets           Flat, Boost

Limiter            Dual Active Peak, RMS, Thermal

Crossover Frequency MF-HF            1100 Hz

Slope MF-HF 24 dB/Octave

MECHANICS

Housing          Multiplex with H.E.T coating, reinforced

Dimension WxHxD   509 mm,1215 mm,533 mm

Weight            50 kg
