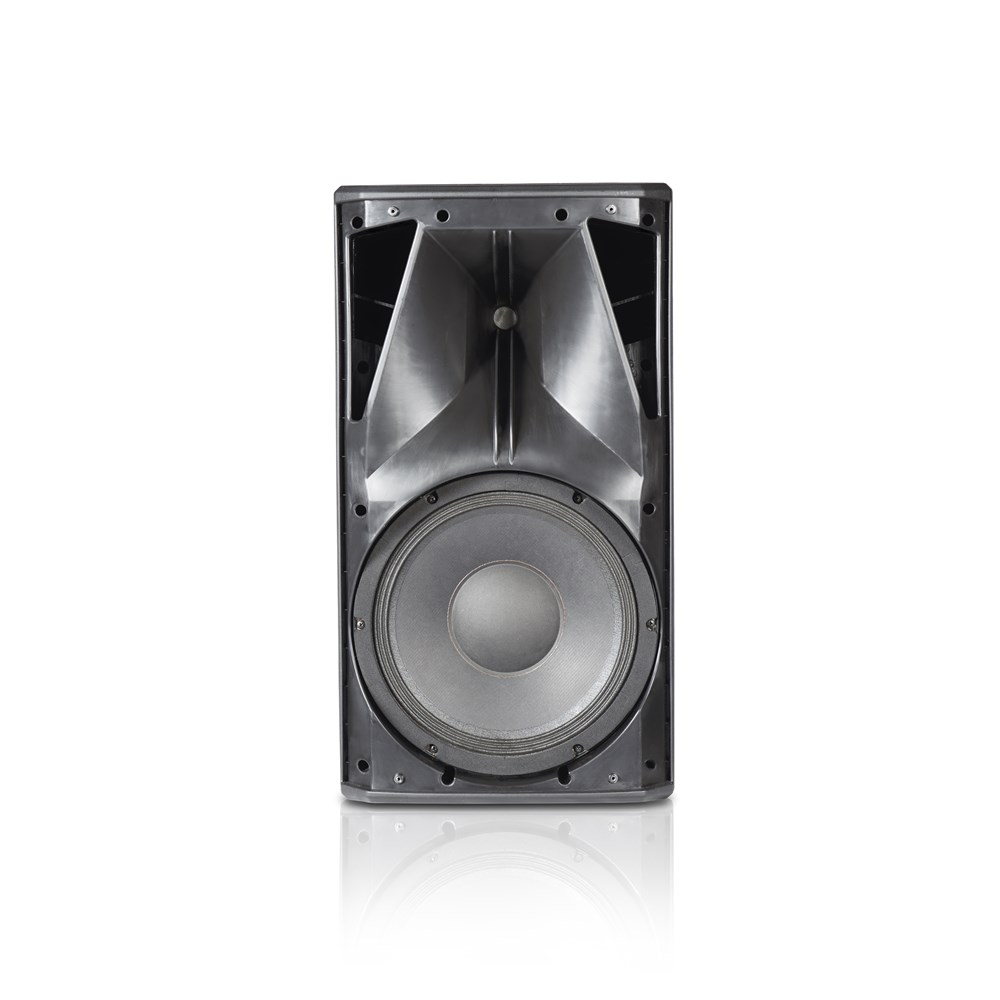

OPERA 10 (dBTechnologies)

2 Yollu Aktif Hoparlör

TEKNİK ÖZELLİKLER

Speaker Type  2-Way Active Speaker

Frequency Response [-10dB] 58 - 20.000 Hz

Frequency Response [- 3dB] 70 - 19.600 Hz

Max SPL        128 dB

HF       1" Exit, 1.4 v.c.

Type HF         Compression driver

Horizontal Directivity            100° (85° up/120° down)

Vertical Directivity    85° (+ 25°/-60°)

Horn    Asymmetrical Horn

LF       10", 2" v.c.

Amp Technology        Amp SMPS Power supply dual range

Amp Class      Class D

RMS Power    600 W

Peak Power     1200 W

Controller       DSP 56 bit

AD/DA Converter     24 bit/48 KHz

System Presets           Rotary Encoder (8 Presets)

CrossOver Frequency 2000 Hz

Limiter            Peak, RMS, Thermal

Advanced DSP Functions     Linear Phase FIR Filters

Signal Input    1xCombo (XLR/Jack 6.3 mm) MIC/Line

Signal Output 1xCombo (XLR/Jack 6.3 mm) MIC/Inst

Signal Output 1x XLR Male (CH1 Link/Mix OUT)

Signal Output Selectable

Width  300 mm (11.81 in)

Height 552 mm (21.73 in)

Depth  301 mm (11.85 in)

Weight            12.3 kg (27.12 lbs)
