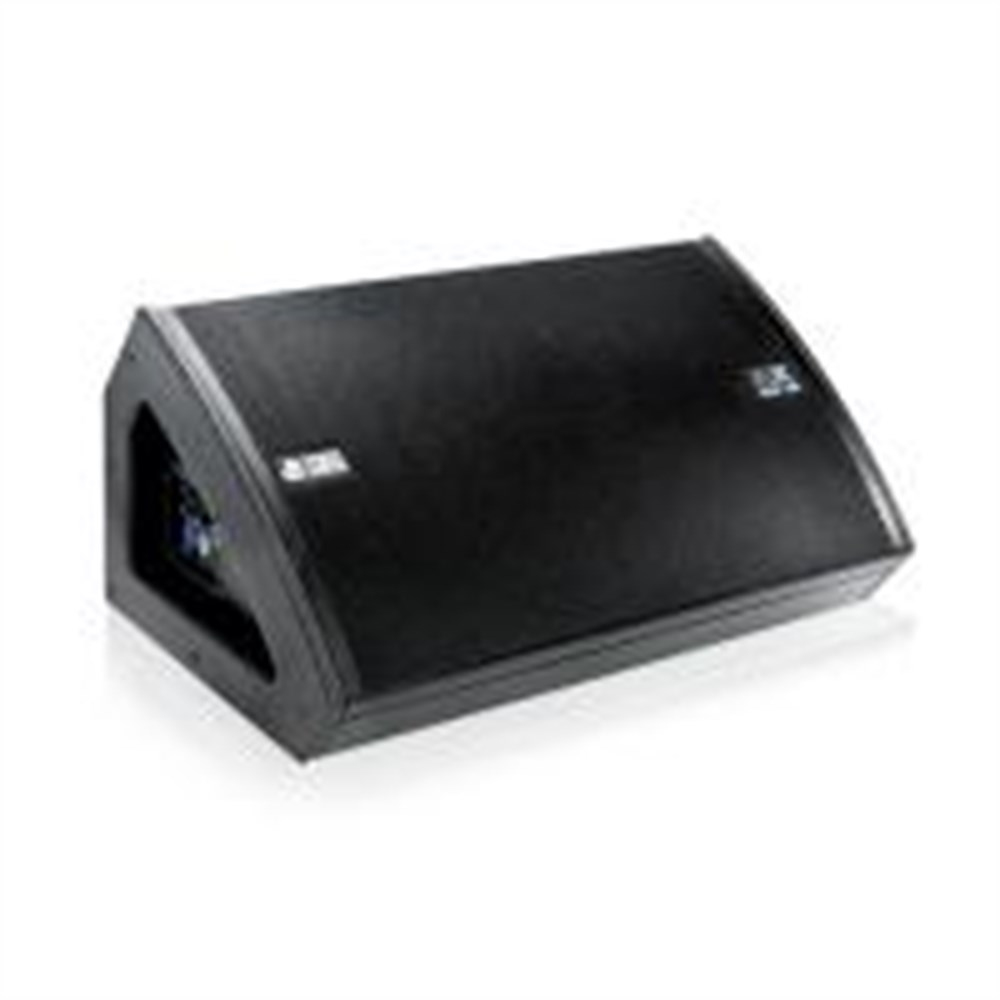

DVX DM15 (DVX DM15)

TEKNİK ÖZELLİKLER

Speaker Type  2-Way Active Stage Monitor

ACOUSTICAL DATA

Frequency Response [-10dB] 50 - 20.000 Hz

Frequency Response [+/- 3dB]          59 - 19.000 Hz

Max SPL        132 dB

HF       1.4 "

Type HF         Neodymium Compression Driver

Voice Coil HF            Titanium 2.5 "

Directivity      60° x 40°

Horn    CD Horn Aluminium

Rotatable Horn           YES

LF       15"

Type LF          Neodymium

Voice Coil LF 3.5"

AMPLIFIER

Amp Technology        Digipro®

Amp Class      Class D

Power RMS    750 W

Peak Power     1500 W

Cooling           Convection

PROCESSOR

Controller       DSP 24 Bit/48 kHz

System Presets           Flat, Monitor

Limiter            RMS, Peak. Thermal, Multiband

Crossover Frequency MF-HF            1320 Hz

Slope MF-HF 24 dB/Octave

MECHANICS

Housing          Multiplex birch plywood

Housing Design          Low Profile Multifunctional

Angles Up      35, 55 °

Dimension WxHxD   734 mm.338 mm.442 mm

Weight            21 kg
