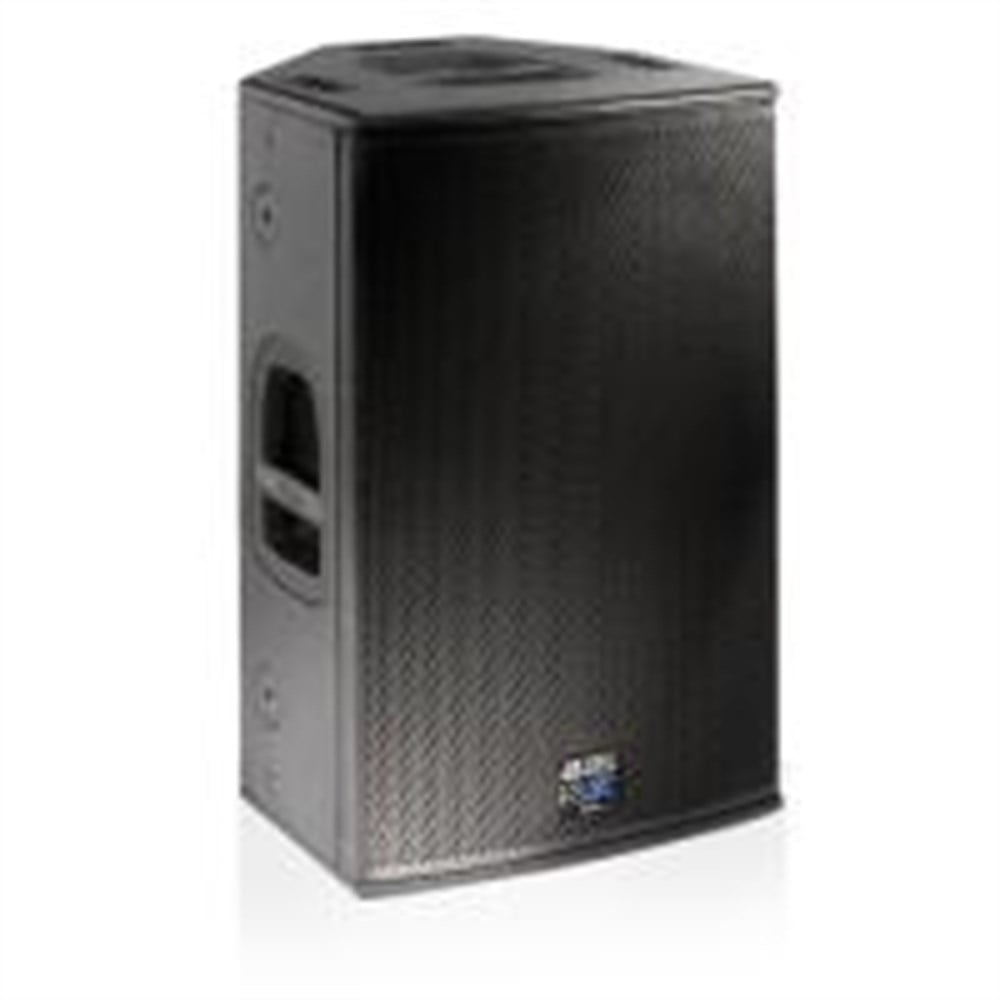

DVX D15 HP (dBTechnologies)

TEKNİK ÖZELLİKLER

Speaker Type  2-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB] 49 - 20.000 Hz

Frequency Response [+/- 3dB]          57 - 19.000 Hz

Max SPL        132 dB

HF       1.4 "

Voice Coil LF Titanium 2.5 "

Directivity      60 x 40 °

Horn    CD Horn Aluminium

Rotatable Horn           YES

LF       15"

Voice Coil LF 3.5"

AMPLIFIER

Amp Technology        Digipro® G2

Amp Class      Class D

Power RMS    700 W

Peak Power     1400 W

Cooling           Convection

PROCESSOR

Controller       DSP 24 Bit/48 kHz

System Presets           FOH, Monitor

Limiter            RMS, Peak. Thermal, Multiband

Crossover Frequency MF-HF            1320 Hz

Slope MF-HF 24 dB/Octave

MECHANICS

Housing          Multiplex birch plywood

Housing Design          Multifunctional

Angles Up      Monitor use 45 °

Dimension WxHxD   430 mm.690 mm.450 mm

Weight            30.3 kg
