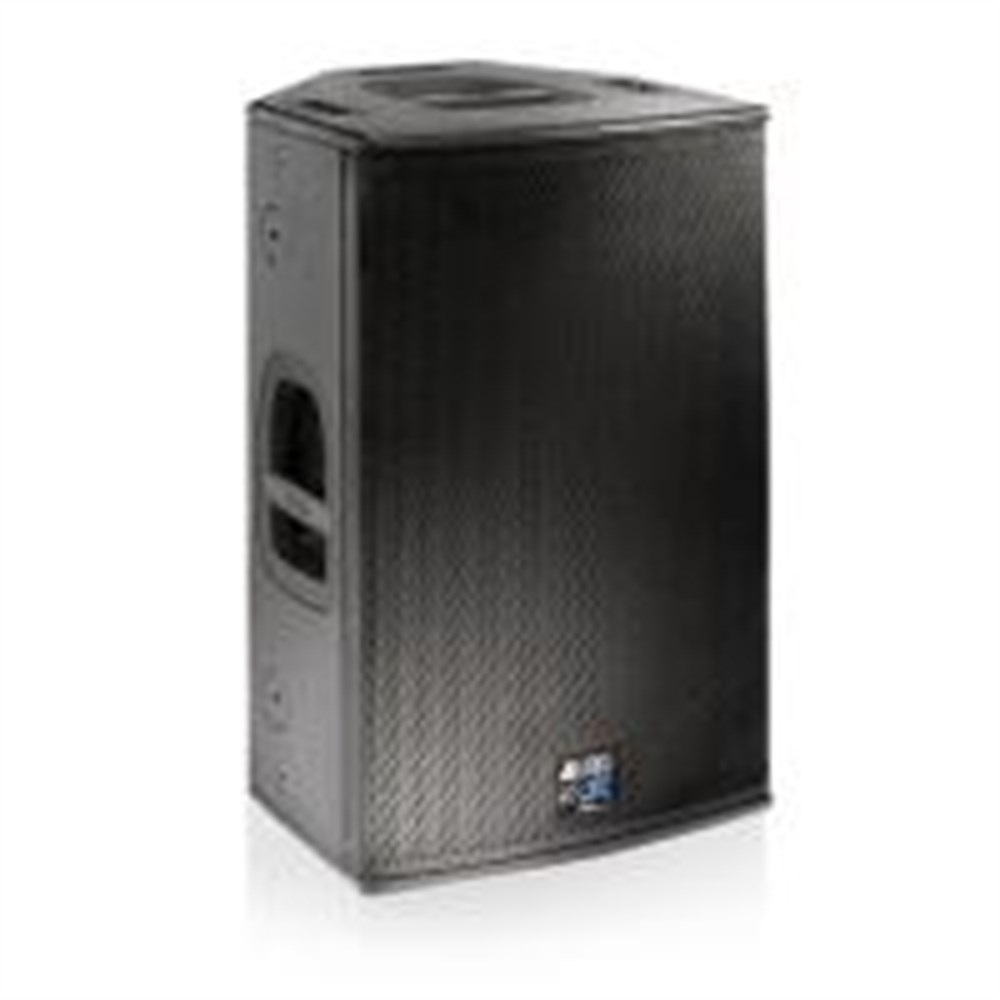

DVX D12 HP (dBTechnologies)

Active Speaker 12" / 1.4" 1400 Watt

TEKNİK ÖZELLİKLER

Speaker Type  2-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB] 55 - 20.000 Hz

Frequency Response [+/- 3dB]          68 - 19.000 Hz

Max SPL        131 dB

HF       1.4"

Voice Coil LF 2.5"

Directivity      60 x 40 °

Horn    CD Horn Aluminium

Rotatable Horn           YES

Voice Coil LF 3"

AMPLIFIER

Amp Technology        Digipro® G2

Amp Class      Class D

Power RMS    700 W

Peak Power     1400 W

Cooling           Convection

PROCESSOR

Controller       DSP 24bit/48kHz

System Presets           FOH, Monitor

Limiter            RMS, Peak. Thermal, Multiband

Crossover Frequency MF-HF            1350 Hz

Slope MF-HF 24 dB/Octave

MECHANICS

Housing Design          Multiplex birch plywood

Housing          Multifunctional

Angles Up      Monitor use 45 °

Dimension WxHxD   370 mm.625mm.395 mm

Weight            27.5 kg
