DVX D10 HP
DVX D10 HP
DVX D10 HP

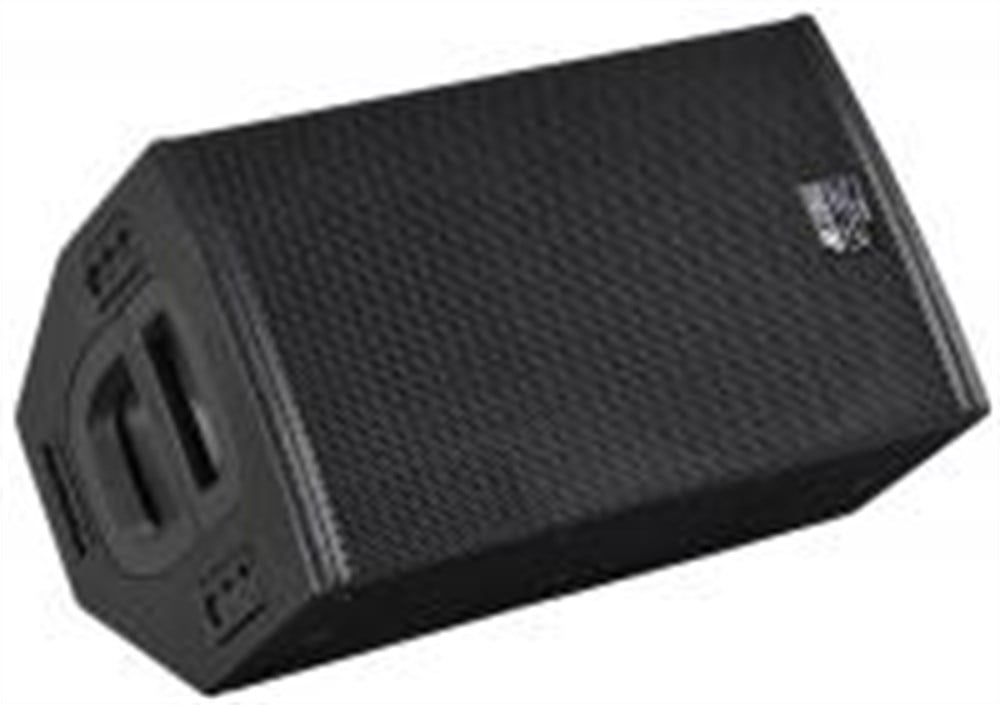

DVX D10 HP (dBTechnologies)

Active Speaker 10" / 1 " 1200 Watt

TEKNİK ÖZELLİKLER

Speaker Type  2-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB] 70 - 20.000 Hz

Frequency Response [+/- 3dB]          85 - 19.000 Hz

Max SPL        127 dB

HF       1"

Voice Coil LF Titanium 1.7 "

Directivity      90x70 °

Horn    CD Horn Aluminium

Rotatable Horn           YES

LF       10"

Voice Coil LF 2"

AMPLIFIER

Amp Technology        Digipro® G2

Amp Class      Class D

Power RMS    600 W

Peak Power     1200 W

Cooling           Convection

PROCESSOR

Controller       DSP 24 Bit/48 kHz

System Presets           Flat, Monitor

Limiter            RMS, Peak. Thermal, Multiband

Crossover Frequency MF-HF            1600 Hz

Slope MF-HF 24 dB/Octave

MECHANICS

Housing          Multiplex birch plywood

Housing Design          Multifunctional

Angles Up      Monitor use 45 °

Dimension WxHxD   290 mm.510 mm.310 mm

Weight            15.8 kg
